Universal sliding T-Bevel

Professional Bevel

---

This tool is essential for DIY enthusiasts!

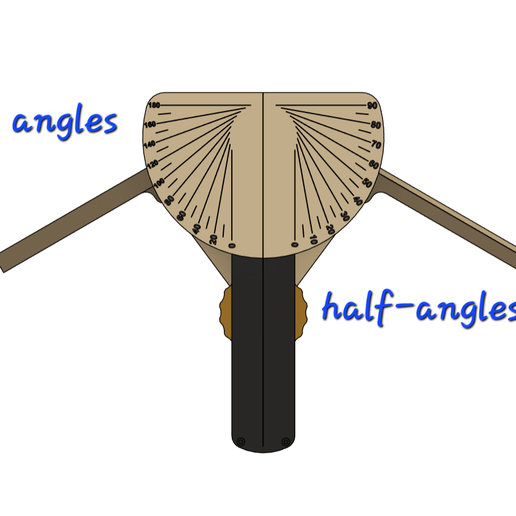

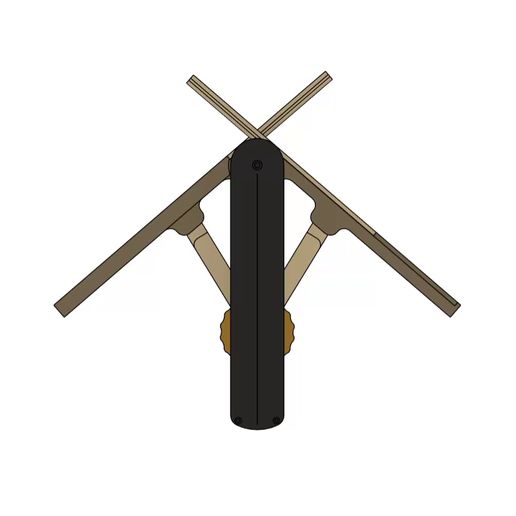

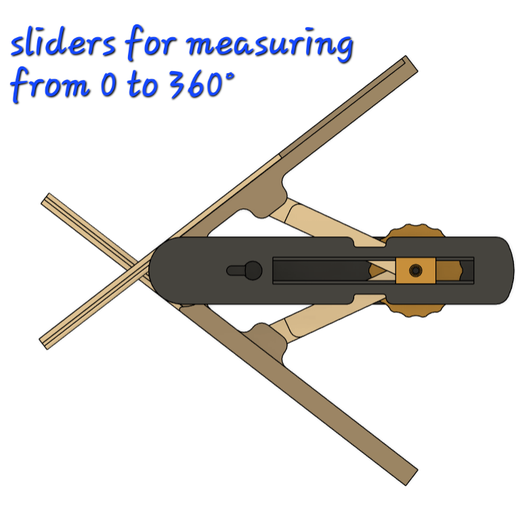

With it, you can measure internal (0 to 180 degrees) and external (180 to 360°) angles, making it twice as useful as other bevel gauges.

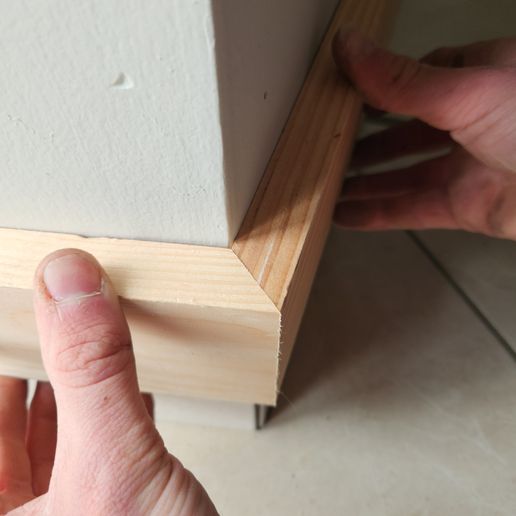

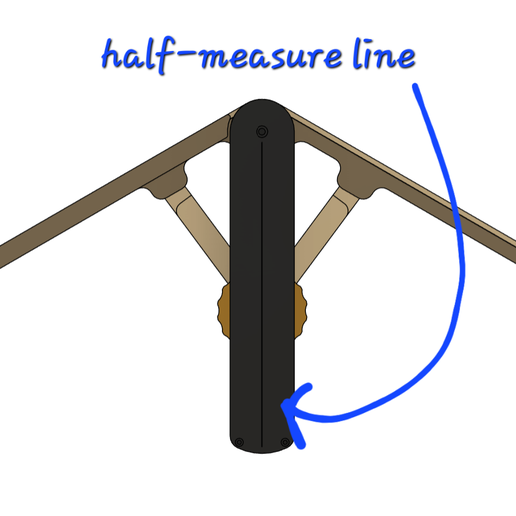

It also allows you to calculate half the angle to cut the correct angle when making joints on your walls.

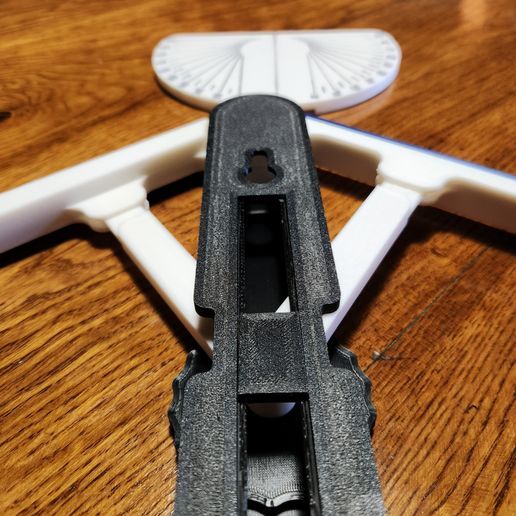

Its ingenious pivot and slide system makes it very practical, fast, and easy to use.

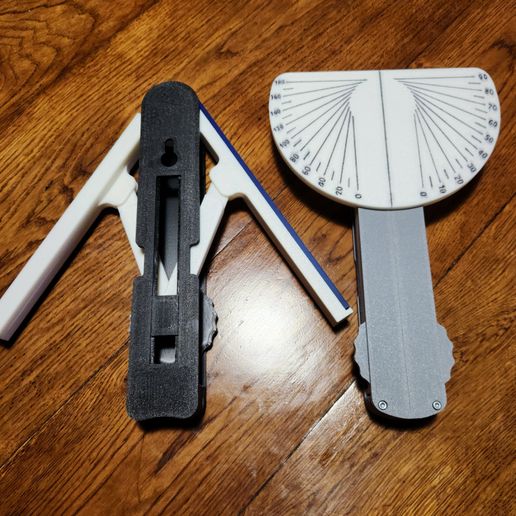

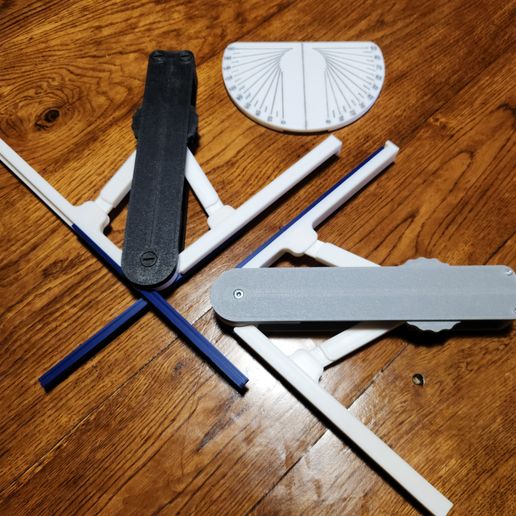

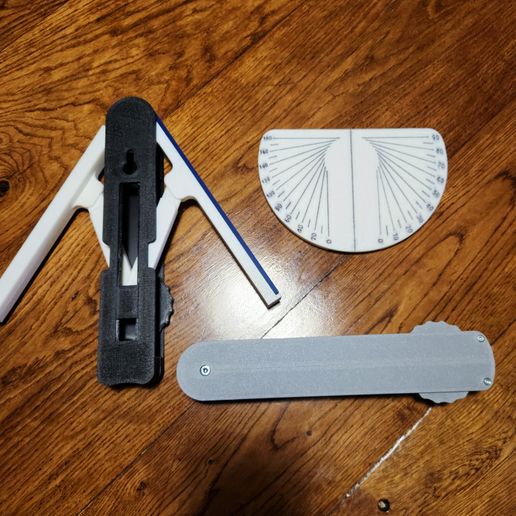

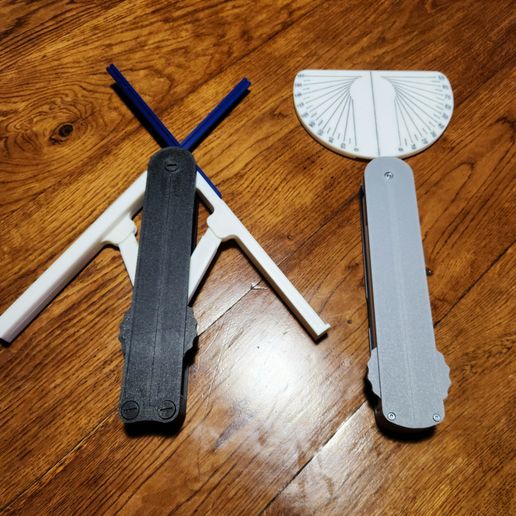

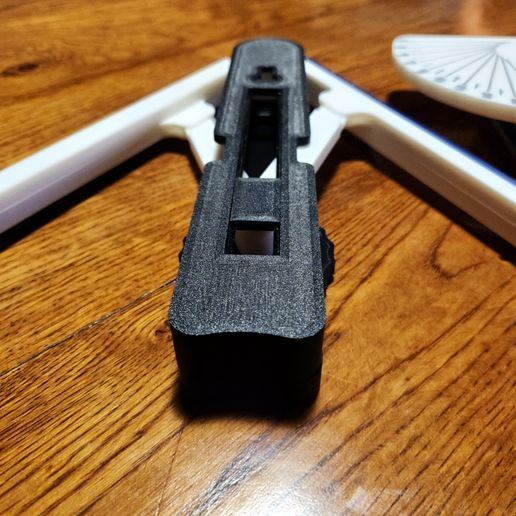

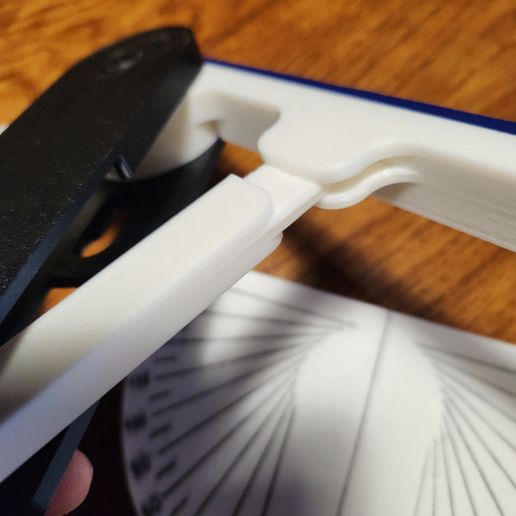

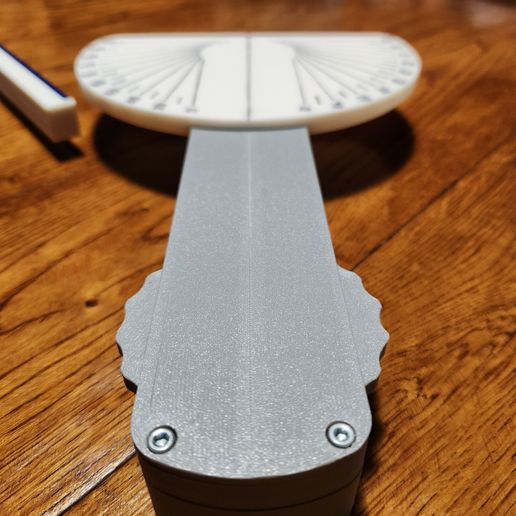

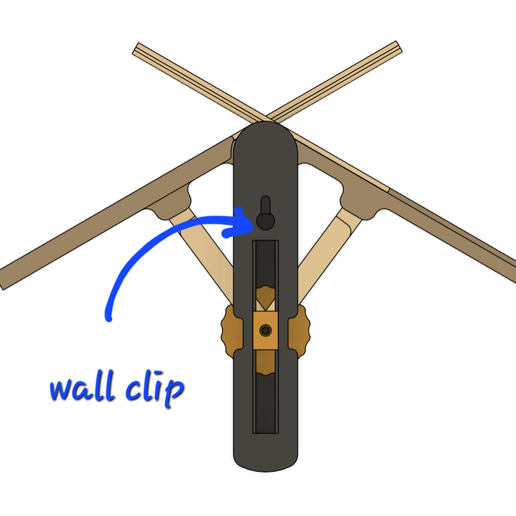

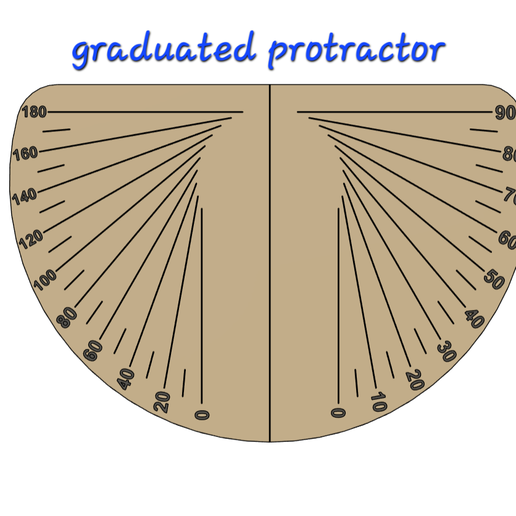

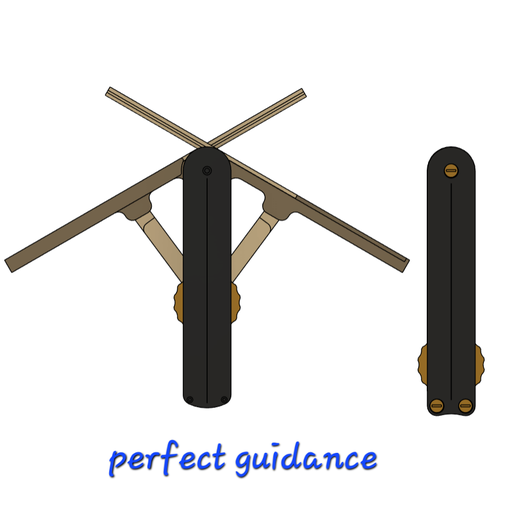

Its many features are available, as you can see in the photos.

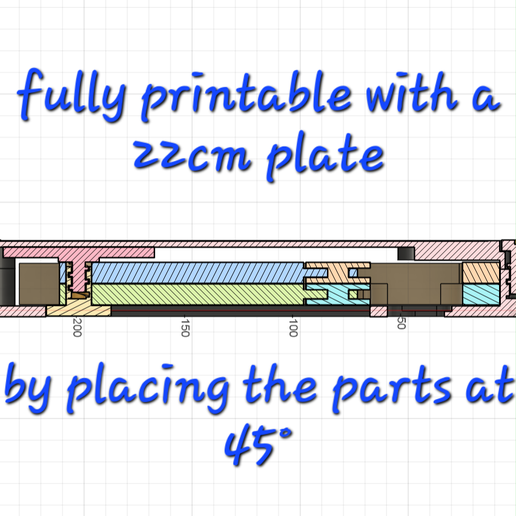

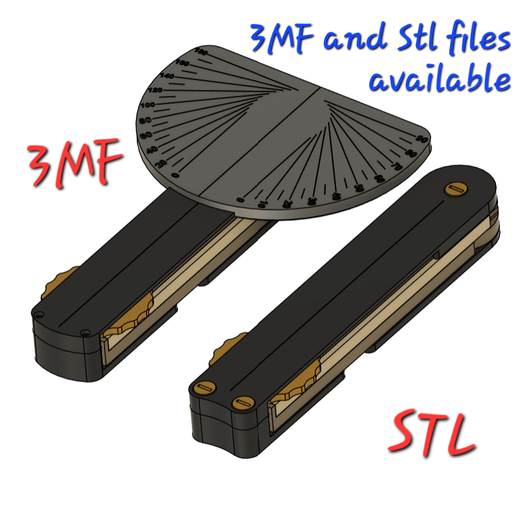

All parts are available in STL and 3MF formats, and you only need a 22x22 cm print bed to print everything.

By downloading this file, you will have access to the first two versions.

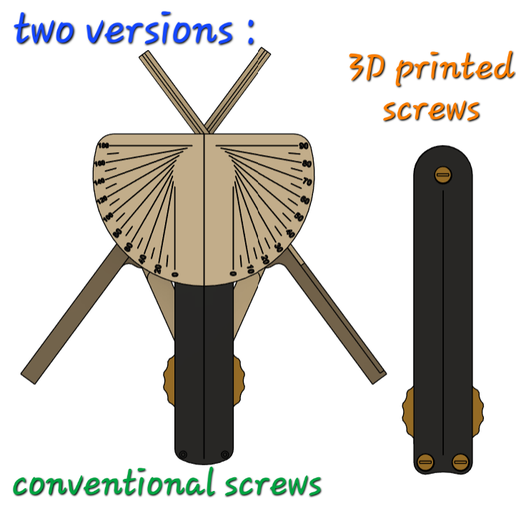

A fully 3D printed version and the other version with screws and brass inserts for which you will need:
- 2 M5 brass inserts (Ruthex type)
- 2 M3 brass inserts
- 1 M5 nut
- 1 M5 screw (10 to 12 mm)
- 2 M3 screws (13 to 15 mm)

After considering user feedback, I modified the part that should be printed in place so that it prints more easily with more space. This part has been added in STL format in the folder.

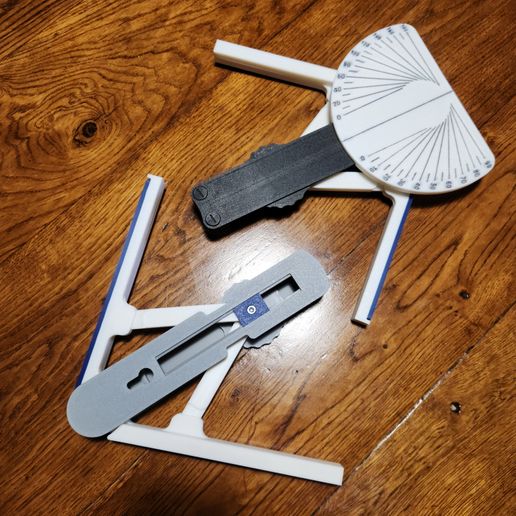

then I made a third version which is not printed in place but which is made up of 3 parts assembled together using two M3 screws of 12 to 15mm and two M3 nuts.

As a DIYer, you might also like this file:

KreaKey

Universal drill bit sharpening guide for 125mm grinder

• 4.6k views
• 46 likes
• 70 downloads
• 1 collection
• 2 comments
• 0 makes

Download -30% US$ 3.39 US$ 2.37

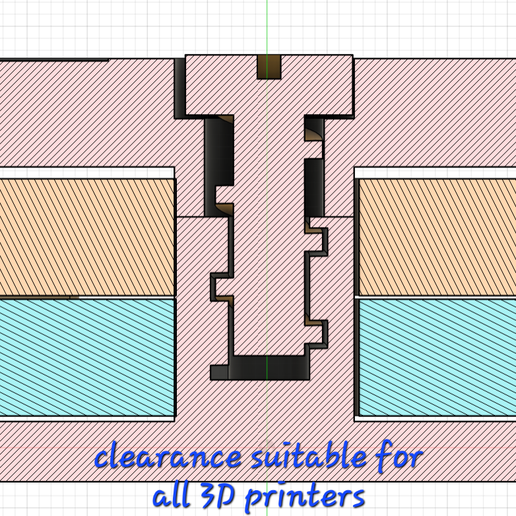

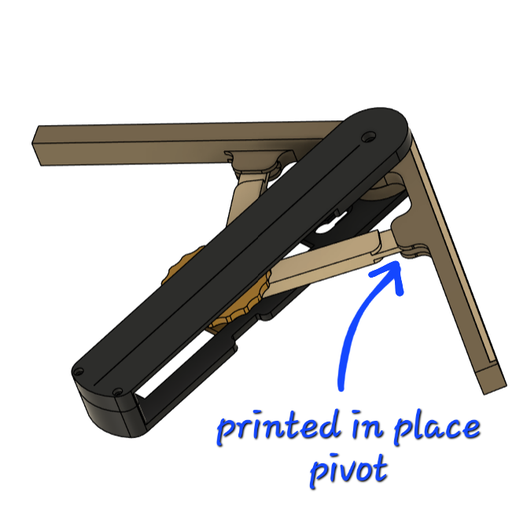

Please note: the left and right pins are printed in place. All files are provided, but be sure to select both parts at the same time if you want to move them.

All parts have faces on which they can be printed.

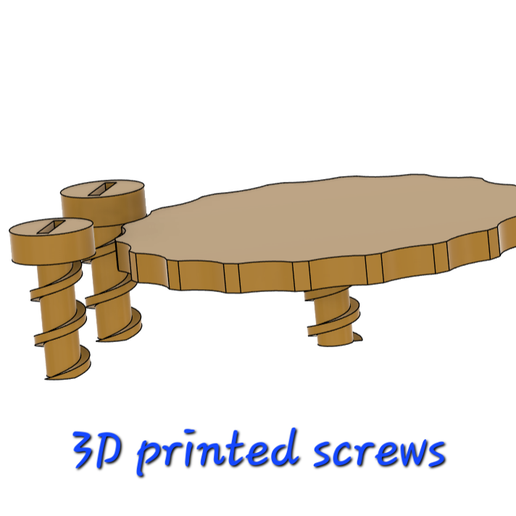

Very little support is required, and I recommend not adding supports to the screw threads (they print very well without them).

PLA is more than sufficient, but you can print it in ABS for better durability.
