F-14 RC Aircraft (Twin 50mm Fan, 1050mm span)

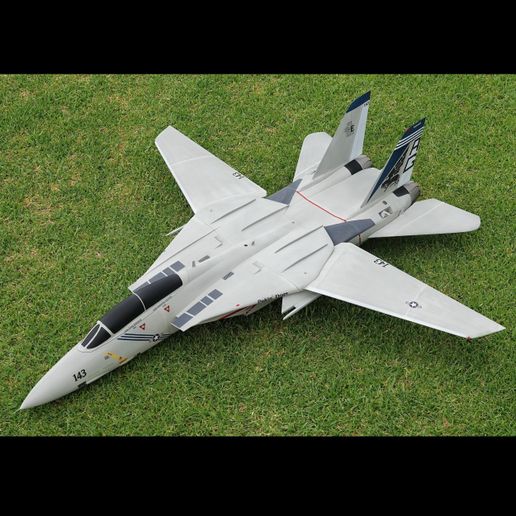

F-14-On-ground.jpg F-14 RC Aircraft (Twin 50mm Fan, 1050mm span)

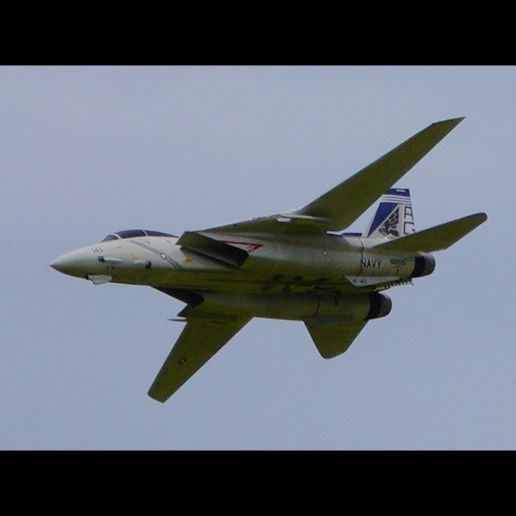

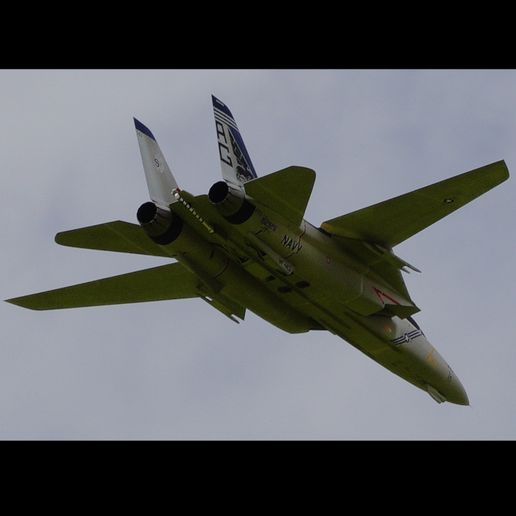

F-14-In-Flight-5.jpg F-14 RC Aircraft (Twin 50mm Fan, 1050mm span)
F-14-In-Flight-4.jpg F-14 RC Aircraft (Twin 50mm Fan, 1050mm span)

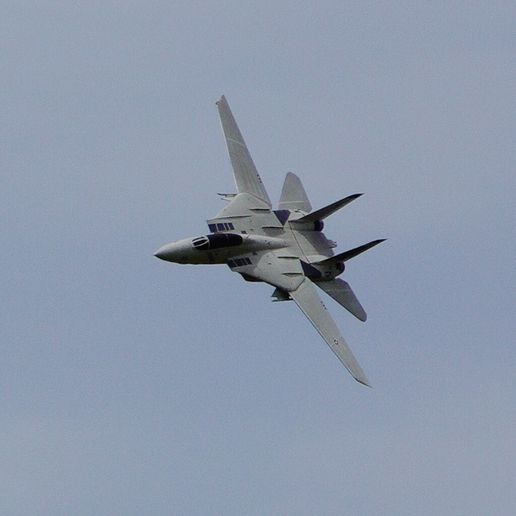

F-14-In-Flight-1.jpg F-14 RC Aircraft (Twin 50mm Fan, 1050mm span)

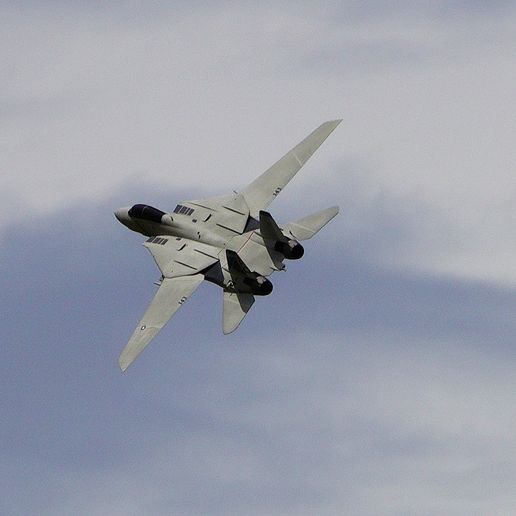

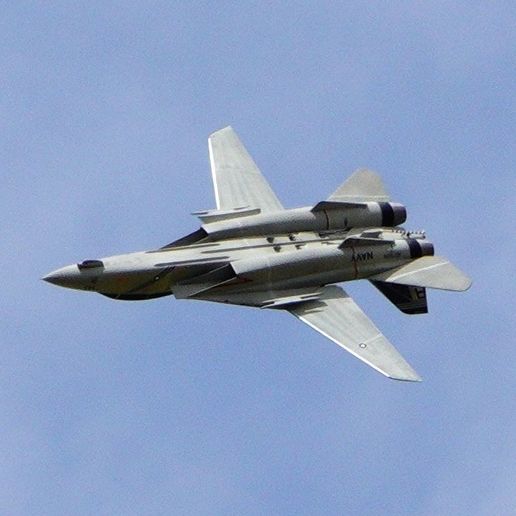

F-14-In-Flight-2.jpg F-14 RC Aircraft (Twin 50mm Fan, 1050mm span)
F-14-In-Flight-3.jpg F-14 RC Aircraft (Twin 50mm Fan, 1050mm span)

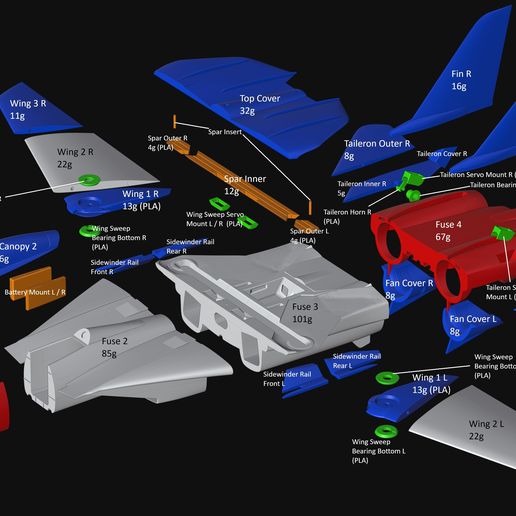

Full-Arrangement-With-Weights.jpg F-14 RC Aircraft (Twin 50mm Fan, 1050mm span)
Additional-details.png F-14 RC Aircraft (Twin 50mm Fan, 1050mm span)
F-14-Full.jpg F-14 RC Aircraft (Twin 50mm Fan, 1050mm span)

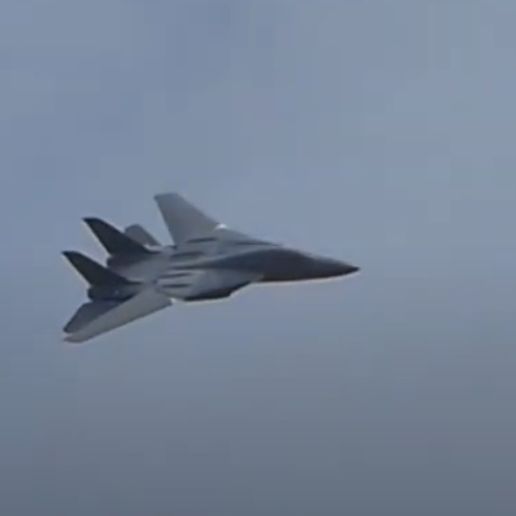

Wings-Swept-1.jpg F-14 RC Aircraft (Twin 50mm Fan, 1050mm span)
Advertising
Share
Add to
Make
Advertising
?
Creation quality: 5/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
2 files (ZIP) Close
  • F-14 Twin 50mm EDF v1.5.zip
    • F-14 Build Guide.pdf
    • Tailerons/Ele Control Horn L.stl
    • Tailerons/Ele Control Horn R.stl
    • Tailerons/L Ele Inner.stl
    • Tailerons/L Ele Outer.stl
    • Tailerons/R Ele Inner.stl
    • Tailerons/R Ele Outer.stl
    • Tailerons/Taileron Bearing L.stl
    • Tailerons/Taileron Bearing R.stl
    • Tailerons/Taileron Cover L.stl
    • Tailerons/Taileron Cover R.stl
    • Fuselage/Battery Tray.stl
    • Fuselage/Canopy Back.stl
    • Fuselage/Canopy Front.stl
    • Fuselage/Engine Strake Cover L.stl
    • Fuselage/Engine Strake Cover R.stl
    • Fuselage/ESC cover.stl
    • Fuselage/Fan Cover L.stl
    • Fuselage/Fan Cover R.stl
    • Fuselage/Fin L.stl
    • Fuselage/Fin R.stl
    • Fuselage/Fuse 1.stl
    • Fuselage/Fuse 2.stl
    • Fuselage/Fuse 3.stl
    • Fuselage/Fuse 4.stl
    • Fuselage/Main Spar.stl
    • Fuselage/Spar Insert L.stl
    • Fuselage/Spar Insert R.stl
    • Fuselage/Tail Cap.stl
    • Fuselage/Tail Hook.stl
    • Fuselage/Wing Plate.stl
    • Fuselage/Wing Sweep Servo L.stl
    • Fuselage/Wing Sweep Servo R.stl
    • Alternate Parts/Reversed Wing sweep servo mounts/Wing Sweep Servo Reversed L.stl
    • Alternate Parts/Reversed Wing sweep servo mounts/Wing Sweep Servo Reversed R.stl
    • Alternate Parts/Smaller Printers/Fuse 1 Back.stl
    • Alternate Parts/Smaller Printers/Fuse 1 Front.stl
    • Alternate Parts/Smaller Printers/Fuse 2L.stl
    • Alternate Parts/Smaller Printers/Fuse 2R.stl
    • Alternate Parts/Smaller Printers/Fuse 3L.stl
    • Alternate Parts/Smaller Printers/Fuse 3R.stl
    • Alternate Parts/Smaller Printers/Wing plate L.stl
    • Alternate Parts/Smaller Printers/Wing plate R.stl
    • Alternate Parts/Split Canopy/Canopy Back Base.stl
    • Alternate Parts/Split Canopy/Canopy Back Top.stl
    • Alternate Parts/Split Canopy/Canopy Front Base.stl
    • Alternate Parts/Split Canopy/Canopy Front Top.stl
    • Alternate Parts/Wing 1 Ball joint mounts/Wing L1 Rod mount.stl
    • Alternate Parts/Wing 1 Ball joint mounts/Wing L1 Screw mount.stl
    • Alternate Parts/Wing 1 Ball joint mounts/Wing R1 Rod mount.stl
    • Alternate Parts/Wing 1 Ball joint mounts/Wing R1 Screw mount.stl
    • Wings/Aileron L1.stl
    • Wings/Aileron L2.stl
    • Wings/Aileron L3.stl
    • Wings/Aileron R1.stl
    • Wings/Aileron R2.stl
    • Wings/Aileron R3.stl
    • Wings/Lower Wing Bearing L.stl
    • Wings/Lower Wing Bearing R.stl
    • Wings/Upper Wing Bearing L.stl
    • Wings/Upper Wing Bearing R.stl
    • Wings/Wing L1 Rod mount.stl
    • Wings/Wing L1 Screw mount.stl
    • Wings/Wing L2.stl
    • Wings/Wing L3.stl
    • Wings/Wing L4.stl
    • Wings/Wing R1 Rod mount.stl
    • Wings/Wing R1 Screw mount.stl
    • Wings/Wing R2.stl
    • Wings/Wing R3.stl
    • Wings/Wing R4.stl
    • Images/LW Flying 1.JPG
    • Images/LW Flying 2.JPG
    • Images/LW Flying 3.JPG
    • Images/LW Flying 4.JPG
    • F-14.blend
    • Alternate Parts/Single bearing tailerons/Fuse 4 single taileron bearing.stl
    • Alternate Parts/Single bearing tailerons/Taileron Bearing single L.stl
    • Alternate Parts/Single bearing tailerons/Taileron Bearing single R.stl
    • Alternate Parts/Single bearing tailerons/Taileron Cover single L.stl
    • Alternate Parts/Single bearing tailerons/Taileron Cover single R.stl
    • Alternate Parts/Smaller Printers/Fuse 4 L Exhaust.stl
    • Alternate Parts/Smaller Printers/Fuse 4 R Exhaust.stl
    • Alternate Parts/Smaller Printers/Fuse 4 Shorter Bottom.stl
    • Alternate Parts/Smaller Printers/Fuse 4 Shorter Top.stl
    • F-14 example profile creality.curaprofile
    • F-14 example profile generic printer.curaprofile
  • F-14 Twin 50mm EDF v2.2.zip
    • Fuselage/Battery Chock.stl
    • Fuselage/Battery Mount L.stl
    • Fuselage/Battery Mount R.stl
    • Fuselage/Canopy 1.stl
    • Fuselage/Canopy 2.stl
    • Fuselage/Exhaust L.stl
    • Fuselage/Exhaust R.stl
    • Fuselage/Fan Cover L.stl
    • Fuselage/Fan Cover R.stl
    • Fuselage/Fin L.stl
    • Fuselage/Fin R.stl
    • Fuselage/Fuse 1.stl
    • Fuselage/Fuse 2.stl
    • Fuselage/Fuse 3.stl
    • Fuselage/Fuse 4.stl
    • Fuselage/Servo Spacer.stl
    • Fuselage/Spar Inner.stl
    • Fuselage/Spar Insert.stl
    • Fuselage/Spar Outer L.stl
    • Fuselage/Spar Outer R.stl
    • Fuselage/Top Cover.stl
    • Fuselage/Wing Sweep Servo Mount L.stl
    • Fuselage/Wing Sweep Servo Mount R.stl
    • Tailerons/Left/Taileron Bearings L.stl
    • Tailerons/Left/Taileron Cover L.stl
    • Tailerons/Left/Taileron Horn L.stl
    • Tailerons/Left/Taileron Inner L.stl
    • Tailerons/Left/Taileron Outer L.stl
    • Tailerons/Left/Taileron Servo Mount L.stl
    • Tailerons/Right/Taileron Bearings R.stl
    • Tailerons/Right/Taileron Cover R.stl
    • Tailerons/Right/Taileron Horn R.stl
    • Tailerons/Right/Taileron Inner R.stl
    • Tailerons/Right/Taileron Outer R.stl
    • Tailerons/Right/Taileron Servo Mount R.stl
    • Wings/Left/Wing 1 L.stl
    • Wings/Left/Wing 2 L.stl
    • Wings/Left/Wing 3 L.stl
    • Wings/Left/Wing Sweep Bearing Bottom L.stl
    • Wings/Left/Wing Sweep Bearing Top L.stl
    • Wings/Right/Wing 1 R.stl
    • Wings/Right/Wing 2 R.stl
    • Wings/Right/Wing 3 R.stl
    • Wings/Right/Wing Sweep Bearing Bottom R.stl
    • Wings/Right/Wing Sweep Bearing Top R.stl
    • Alternate parts/Larger Fans/Fan Cover L Larger Fans.stl
    • Alternate parts/Larger Fans/Fan Cover R Larger Fans.stl
    • Alternate parts/Larger Fans/Fuse 4 Larger Fans.stl
    • Alternate parts/Smaller Printers/Fuse 1 Front.stl
    • Alternate parts/Smaller Printers/Fuse 1 Rear.stl
    • Alternate parts/Smaller Printers/Fuse 2 L.stl
    • Alternate parts/Smaller Printers/Fuse 2 R.stl
    • Alternate parts/Smaller Printers/Fuse 3 L.stl
    • Alternate parts/Smaller Printers/Fuse 3 R.stl
    • Alternate parts/Smaller Printers/Top Cover L.stl
    • Alternate parts/Smaller Printers/Top Cover R.stl
    • Fuselage/Ventral Fin Cover.stl
    • F-14 Build Guide v2.2.pdf
    • Scale Details/Antenna 1.stl
    • Scale Details/Antenna 2.stl
    • Scale Details/Hook L.stl
    • Scale Details/Hook R.stl
    • Scale Details/Nose Probe L.stl
    • Scale Details/Nose Probe R.stl
    • Scale Details/Phoenix Pylon B L.stl
    • Scale Details/Phoenix Pylon F L.stl
    • Scale Details/Phoenix.stl
    • Scale Details/Sidewinder 1.stl
    • Scale Details/Sidewinder 2.stl
    • Scale Details/Sidewinder Rail Front L.stl
    • Scale Details/Sidewinder Rail Front R.stl
    • Scale Details/Sidewinder Rail Rear L.stl
    • Scale Details/Sidewinder Rail Rear R.stl
    • Scale Details/Sparrow Full 1.stl
    • Scale Details/Sparrow Full 2.stl
    • Scale Details/Sparrow Half 1.stl
    • Scale Details/Sparrow Half 2.stl
    • Scale Details/Tailcone 1.stl
    • Scale Details/Tailcone 2.stl
    • Scale Details/Tailcone 3.stl
    • Scale Details/TCS Fairing.stl
    • Images/In Flight 1.JPG
    • Images/In Flight 2.JPG
    • Images/In Flight 3.JPG
    • Images/In Flight 4.JPG
    • Images/In Flight 5.JPG
    • Images/In Flight 6.JPG
    • Images/In Flight 7.JPG
    • Images/On Ground.JPG
    • F-14 LW-PLA example 5_2_2.curaprofile

Learn more about the formats
Last update 2025-02-05 at 17:03
Publication date 2022-03-05 at 11:56
Design number 656470
DJDesigns

DJDesigns

Issue with this design? Report a problem.

3D printer file info

3D model description

Update V2.2 - 30 December 2024
Added various scale details

Update V2.1 - 07 July 2024
Added parts to accommodate slightly larger fans
Added a cover to protect the ventral fins on landing

Update v2.0 - 06 June 2024:
Complete redesign of entire aircraft, optimised for LW-PLA
Significantly improved scale outline and details
Slightly larger in size
Much better flight characteristics

v1.5 - 28 November 2022:
Old version is still available, but print v2.0 instead!

To get updates, simply redownload the files

RC aircraft of the F-14 Tomcat. Has all moving tail and swing wings and is powered by two 50mm fans
The build guide for this aircraft is included, but can be downloaded for free from: https://cults3d.com/en/3d-model/various/build-guide-f-14-rc-aircraft-twin-50mm-fan-960mm-span

General info: (v2.2)
Wingspan unswept / swept: 1050 mm / 620 mm
Length: 1020 mm
Airframe weight: 980g
Flying weight (4s 3300): 1.32 kg
Thrust (2x 4s 50mm EDF): 1.6 kg
TWR: 1.2

Required Parts: (v2.2)
• Roughly 550g of LW-PLA and some normal PLA
• 9g Servos – x4 – I recommend high torque servos especially for the wing sweep
• Medium and or thin CA glue
• Receiver – Recommended: 6 channels
• Battery – Recommended: 4s 3300mah
• 50 mm fan x2 - Recommended FMS 50mm 4s
• https://www.fmshobby.com/products/edf-system-50mm-11-blade-4s-power-system-with-2627-kv4500-motor
• 2x10mm magnets x2
• ESC x2 – Recommended 40 amp
• 6x12x4 Ball Bearing - x8
• 2 x 10 Magnets
• Screws - M2 or similar
• Velcro for Battery
• RC Ball joints, threaded rod and/or threaded wire linkages for wing sweep
• 2 mm Wire or carbon to connect the wing sweep linkage to the wing
• 1 – 2mm Wire for Taileron linkages
• Double sided tape for receiver, fans and speed controllers
• 860mm of 6mm carbon tube:
• 343mm x2
• 21mm x2
• 62 mm x2
• 1210mm of 6x1 or 5x1 carbon strip:
• 304mm x2
• 298mm x2

Flight videos:
v2.2
Maiden Flight: https://youtu.be/XE5QtnjldTs
Another Flight: https://youtu.be/1juFIu8r7qY
v1.5
Old Version flight: https://youtu.be/sg9M_x6-HZ0?list=PLhEK6I0H1i4ZDkbFCjMeGrI3akzgK_giq
Thanks to MrWaz11 for all flight photography

3D printing settings

Material: LW PLA and PLA
Minimum Print Volume: 200 x 200 x 230mm
Ideal Print Volume: 255 x 255 x 320mm
Printed with 0.4mm nozzle
The build guide provides an image showing specific print settings used
