ESC 6x6 MK1 "Six Claw 6x6" _1/10 RC Body and Chassis

Advertising
Share
Add to
Make
Advertising
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
3 files (PDF and ZIP) Close
  • Dashboard.pdf
  • ESC 6x6 MK1.zip
    • Attachments/Air Cleaner.STL
    • Attachments/Air Horn Mount x2.STL
    • Attachments/Air Horn Sound Chamber x8.STL
    • Attachments/Air Horn Trumpet (Large) x4_TPU.STL
    • Attachments/Air Horn Trumpet (Small) x4_TPU.STL
    • Attachments/Air Intake pipe cap.STL
    • Attachments/Air Intake pipe.STL
    • Attachments/Air Intake Tube.STL
    • Attachments/Air Manifold.STL
    • Attachments/Air Tank Lower x2.STL
    • Attachments/Air Tank rear x3.STL
    • Attachments/Air Tank Upper.STL
    • Attachments/Exhaust Base Pipe.STL
    • Attachments/Exhaust Stack Cap_TPU.STL
    • Attachments/Exhaust Stack Pipe.STL
    • Attachments/Fire Extinguisher Body x2.STL
    • Attachments/Fire Extinguisher Bracket x2.STL
    • Attachments/Fire Extinguisher cap x2.STL
    • Attachments/Fire Extinguisher Handle x2.STL
    • Attachments/Fuel Tank.STL
    • Attachments/Main Roll Bar.STL
    • Attachments/Mirror Arm left_TPU.STL
    • Attachments/Mirror Arm right_TPU.STL
    • Attachments/Rear Cross Bar.STL
    • Attachments/Rear Strut left.STL
    • Attachments/Rear Strut right.STL
    • Attachments/Shackle Mount x2.STL
    • Attachments/Side Mirror Bracket x4.STL
    • Attachments/Side Mirror x2.STL
    • Attachments/Tow Shackle x2.STL
    • Body/Cab Rear Panel.STL
    • Body/Door Handle x2.STL
    • Body/Door Hinge x2.STL
    • Body/Door Latch x2.STL
    • Body/Door left.STL
    • Body/Door right.STL
    • Body/Door Striker.STL
    • Body/DoorGlass Retainer left.STL
    • Body/DoorGlass Retainer right.STL
    • Body/Engine Side Panel left.STL
    • Body/Engine Side Panel right.STL
    • Body/Firewall.STL
    • Body/Front Fender left.STL
    • Body/Front Fender right.STL
    • Body/Front Grille.STL
    • Body/Hood Hinge x4.STL
    • Body/Hood Latch A x2.STL
    • Body/Hood Latch B x2.STL
    • Body/Hood Latch C x2.STL
    • Body/Hood Latch D x2.STL
    • Body/Hood.STL
    • Body/Rear Window Retainer.STL
    • Body/Roof Cable Cover.STL
    • Body/Roof.STL
    • Body/Windshield Frame.STL
    • Body/Windshield Retainer.STL
    • Chassis/Air Manifold Bracket.STL
    • Chassis/Air Tank Mount.STL
    • Chassis/Battery Tray Bracket.STL
    • Chassis/Floor.STL
    • Chassis/Front Bumper Tow Roller.STL
    • Chassis/Front bumper.STL
    • Chassis/Fuel Tank Mount.STL
    • Chassis/Large Battery Tray.STL
    • Chassis/Link Mount.STL
    • Chassis/Mainframe connector left.STL
    • Chassis/Mainframe connector right.STL
    • Chassis/Mainframe front left.STL
    • Chassis/Mainframe front right.STL
    • Chassis/Mainframe left.STL
    • Chassis/Mainframe middle left.STL
    • Chassis/Mainframe middle right.STL
    • Chassis/Mainframe rear left.STL
    • Chassis/Mainframe rear right.STL
    • Chassis/Mainframe right.STL
    • Chassis/Medium Battery Tray.STL
    • Chassis/Middle cross beam.STL
    • Chassis/Motor mount.STL
    • Chassis/Number plate.STL
    • Chassis/Rear Chassis Plate.STL
    • Chassis/Roll Cage Bracket front left.STL
    • Chassis/Roll Cage Bracket front right.STL
    • Chassis/Roll Cage Bracket rear left.STL
    • Chassis/Roll Cage Bracket rear right.STL
    • Chassis/Running Board left.STL
    • Chassis/Running Board right.STL
    • Chassis/Small Battery Tray.STL
    • Interior/Dashboard.STL
    • Interior/Seat base left.STL
    • Interior/Seat base right.STL
    • Interior/Seat left.STL
    • Interior/Seat right.STL
    • Interior/Steering column bracket.STL
    • Interior/Steering column.STL
    • Interior/Steering wheel.STL
    • Optional parts/Checked Plate Guide.STL
    • Optional parts/Mirror Guide.STL
    • Optional parts/Sound Module Mount.STL
    • Steering Wheel Move Module_ESC 6x6 MK1/35mm_Steering column_SWMM.STL
    • Steering Wheel Move Module_ESC 6x6 MK1/Steering column bracket_SWMM.STL
    • Steering Wheel Move Module_ESC 6x6 MK1/Steering wheel servo mount_SWMM.STL
  • Non 3d-printed parts list_ESC 6x6.pdf

Learn more about the formats
Publication date 2025-03-13 at 01:41
Design number 2817776
Elvis_RC_Studio

Elvis_RC_Studio

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

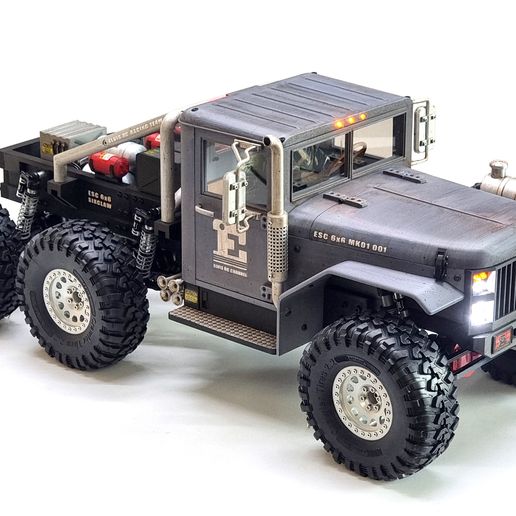

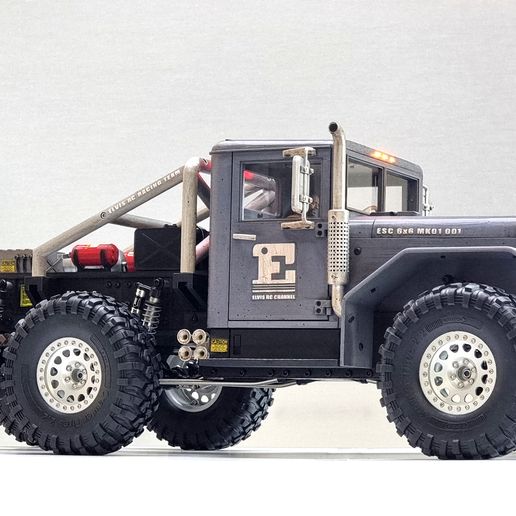

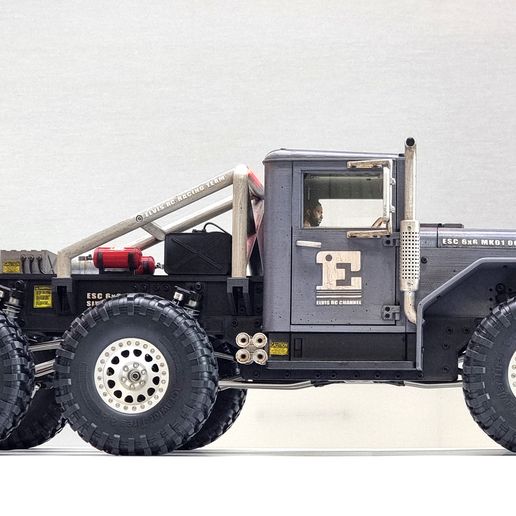

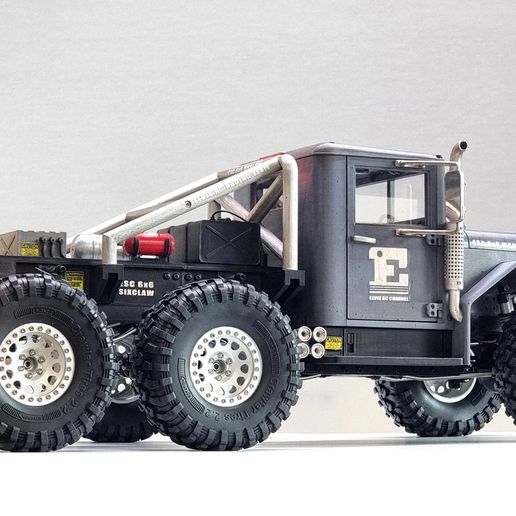

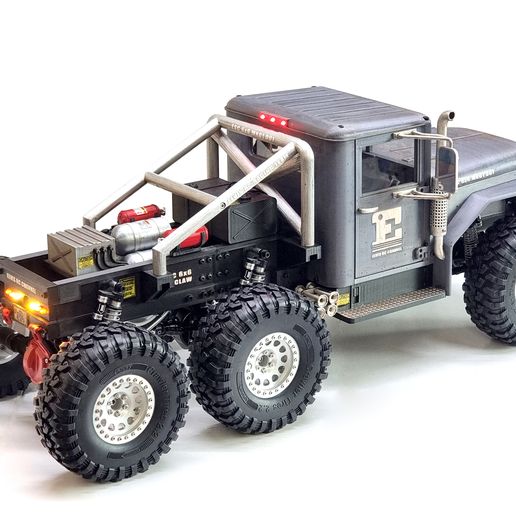

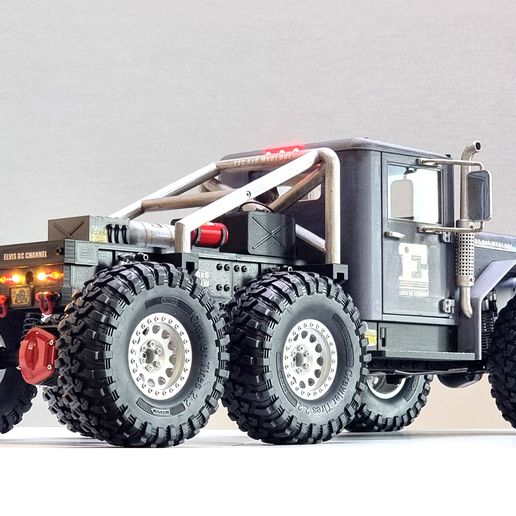

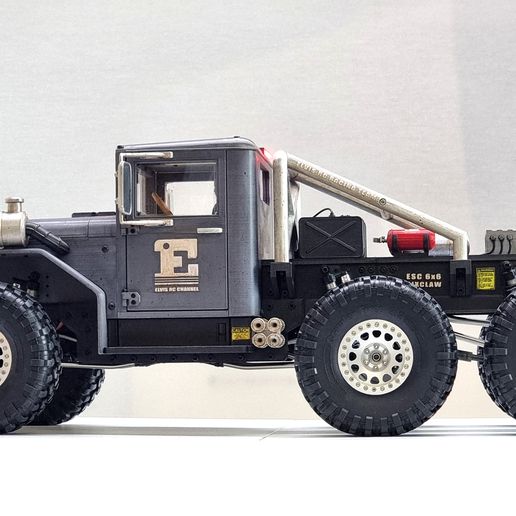

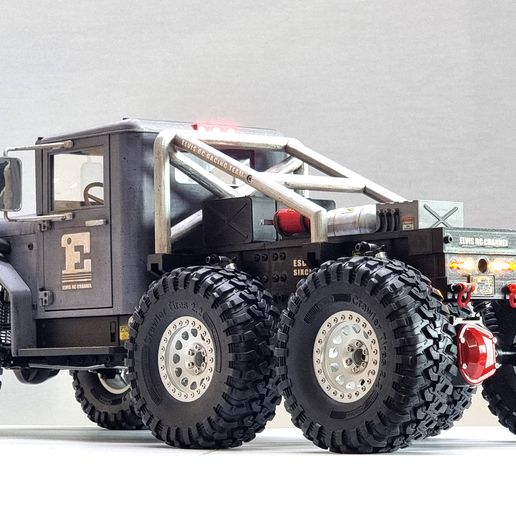

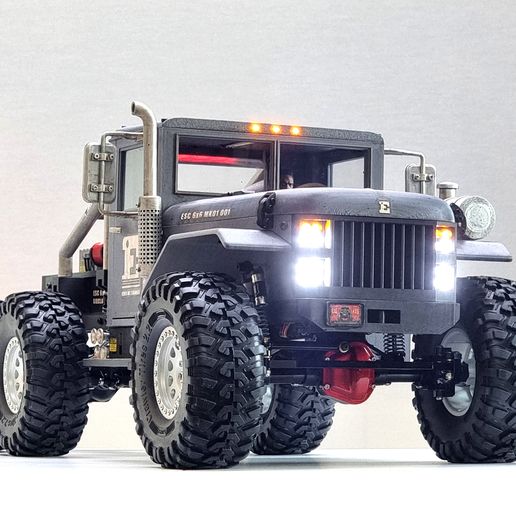

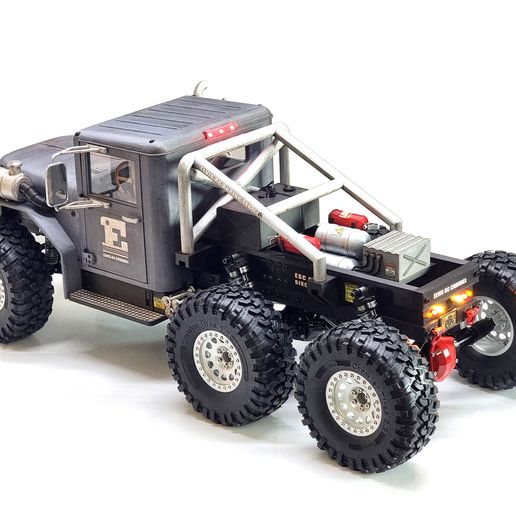

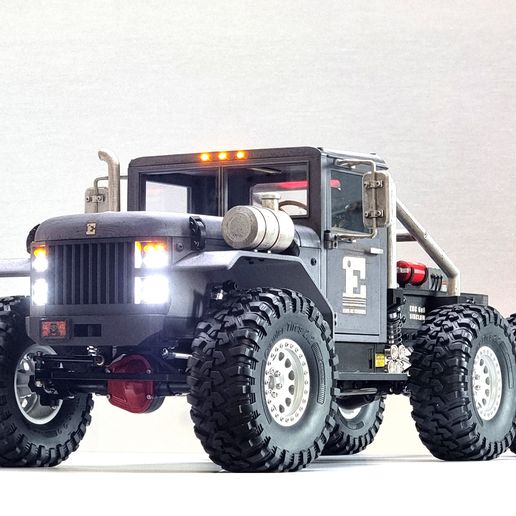

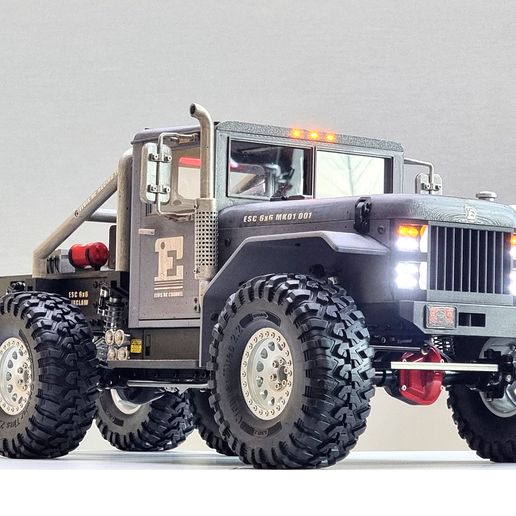

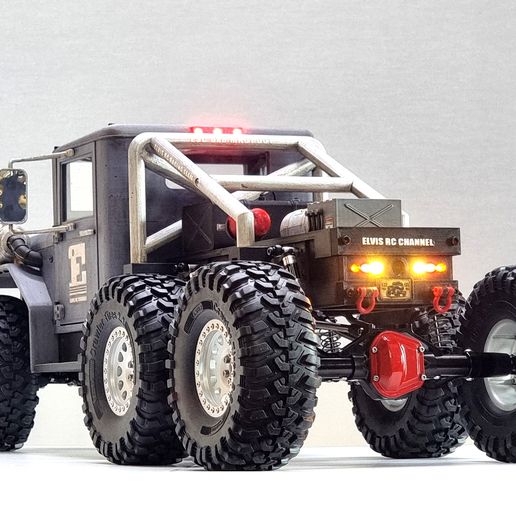

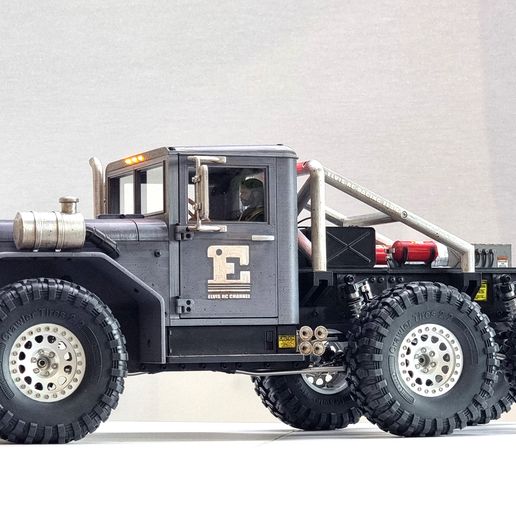

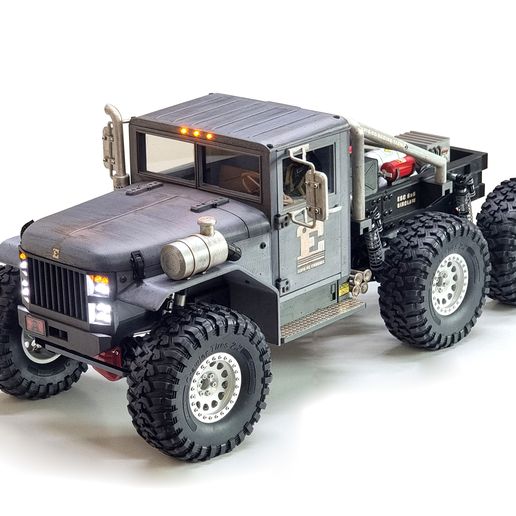

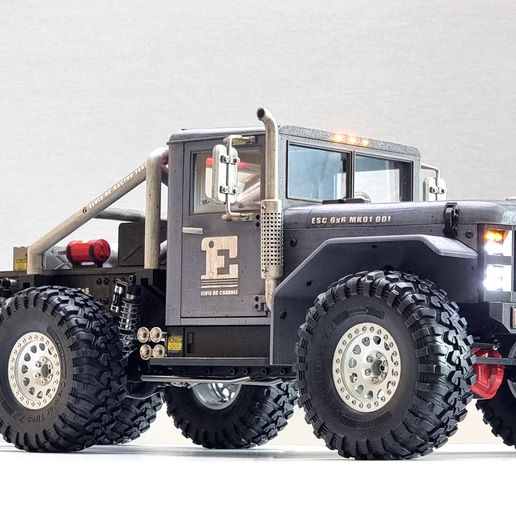

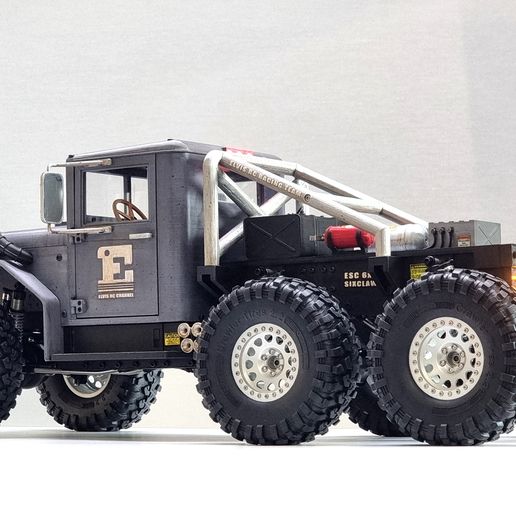

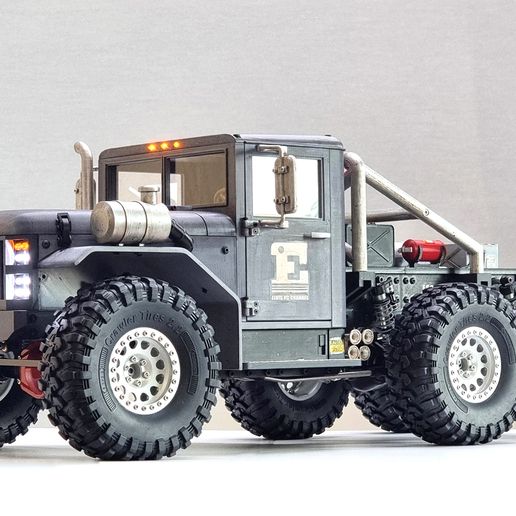

The ESC 6x6 MK1 "Six Claw 6x6" is a 1/10 scale six-wheel all-terrain vehicle based on a coil suspension system

This model is designed with the concept of a vintage truck customized into a rugged off-road leisure vehicle, emphasizing its unique and distinctive design.

Design Features

• Optimized Size: Designed to stay within 600mm in length when 3D printed, ensuring it is not excessively large compared to a standard 1/10 scale 4WD vehicle.

• Excellent Climbing Performance: The front bumper protrusion is minimized, achieving 90-degree approach and departure angles, which enhances performance and fun in rock crawling.

• Detailed Accessories Included: The fire extinguisher, fuel tank, air tank, air manifold, air horn, and all other visible accessories in the images are included in the data package.

• Functional Elements: The doors and hood can be opened and closed, with a locking mechanism included.

Battery & Expandability

• The battery tray comes in three different sizes, allowing compatibility with various batteries.

• When using the small battery tray, a sound module can be installed inside the engine bay, which is available as an optional part.

• The shock mounts feature multiple mounting holes, allowing for easy adjustment without the need to remove additional parts, enabling direct and intuitive positioning.

Elvis RC follows a development philosophy of "easy printing, enjoyable assembly, strong durability, and unique design," and the "Six Claw 6x6" perfectly embodies these principles.

To print this model, a 3D printer with a build volume of at least 220×220×220mm is required

https://youtu.be/_KhrOYQUETs - assembly manual video
https://youtu.be/0qodm6FxeGM - Driving footage

vehicle Specifications
575 x 218(Excluding Mirrors) x 193 (height) - Only the 3D-printed body and chassis

Wheelbase
330mm_Middle axle
480mm_Rear axle

The Elvis RC Community is hosted on a Facebook group, providing a space to ask and answer questions related to assembly.

In this group, you can explore other builders' creations, share ideas, and connect with fellow enthusiasts.

Join us to gain insights and enjoy the fun of building RC cars together!

https://www.facebook.com/groups/1297721991377726

3D printing settings

0.4mm nozzle
0.15mm layer height
bed temp: 50℃
nozzle temp: 230-240℃
top and bottom: 5 layer
wall: 2.0mm
fill: 40%
