ERH 6x6 MK1 "Rock Haul 6x6" _1/10 RC Body and Chassis

Advertising
Share
Add to
Make
Advertising
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
4 files (PDF and ZIP) Close
  • Dashboard.pdf
  • ERH 6x6 MK1_Rev1(BoltHoleFix).zip
    • Attachments/Air Cleaner Cover x2.STL
    • Attachments/Air Cleaner left.STL
    • Attachments/Air Cleaner right.STL
    • Attachments/Air Horn Mount.STL
    • Attachments/Air Horn Sound Chamber x4.STL
    • Attachments/Air Horn Trumpet (Large) x2.STL
    • Attachments/Air Horn Trumpet (Small) x2.STL
    • Attachments/Air Intake Tube left.STL
    • Attachments/Air Intake Tube right.STL
    • Attachments/Exhaust Base Pipe left.STL
    • Attachments/Exhaust Base Pipe right.STL
    • Attachments/Exhaust Stack Cap left.STL
    • Attachments/Exhaust Stack Cap right.STL
    • Attachments/Exhaust Stack Mount left.STL
    • Attachments/Exhaust Stack Mount right.STL
    • Attachments/Exhaust Stack Pipe left.STL
    • Attachments/Exhaust Stack Pipe right.STL
    • Attachments/Fuel Cap x2.STL
    • Attachments/Fuel Tank Bottom left.STL
    • Attachments/Fuel Tank Bottom right.STL
    • Attachments/Fuel Tank Mount x2.STL
    • Attachments/Fuel Tank Top left.STL
    • Attachments/Fuel Tank Top right.STL
    • Attachments/Mirror Arm left.STL
    • Attachments/Mirror Arm right.STL
    • Attachments/Side Mirror x2.STL
    • Attachments/Sun Visor.STL
    • Body/Cab Rear Panel.STL
    • Body/Door Handle x2.STL
    • Body/Door Hinge x2.STL
    • Body/Door Latch x2.STL
    • Body/Door left.STL
    • Body/Door right.STL
    • Body/Door Striker.STL
    • Body/DoorGlass Retainer left.STL
    • Body/DoorGlass Retainer right.STL
    • Body/Engine Side Panel left.STL
    • Body/Engine Side Panel right.STL
    • Body/Firewall.STL
    • Body/Front Fender left.STL
    • Body/Front Fender right.STL
    • Body/Hood.STL
    • Body/Nose Cone.STL
    • Body/Rear Window Retainer.STL
    • Body/Roof.STL
    • Body/Windshield Frame.STL
    • Body/Windshield Retainer.STL
    • Chassis/Cantilever Arm front x4.STL
    • Chassis/Cantilever Arm rear x2.STL
    • Chassis/Floor.STL
    • Chassis/Front bumper.STL
    • Chassis/Link Mount.STL
    • Chassis/Mainframe connector.STL
    • Chassis/Mainframe front left.STL
    • Chassis/Mainframe front right.STL
    • Chassis/Mainframe left.STL
    • Chassis/Mainframe middle left.STL
    • Chassis/Mainframe middle right.STL
    • Chassis/Mainframe rear left.STL
    • Chassis/Mainframe rear right.STL
    • Chassis/Mainframe right.STL
    • Chassis/Medium Battery Tray Bracket.STL
    • Chassis/Medium Battery Tray.STL
    • Chassis/Middle cross beam top.STL
    • Chassis/Middle cross beam.STL
    • Chassis/Motor mount.STL
    • Chassis/Number plate.STL
    • Chassis/Ramp Stopper.STL
    • Chassis/Rear bumper.STL
    • Chassis/Rear cross beam.STL
    • Chassis/Running Board left.STL
    • Chassis/Running Board right.STL
    • Chassis/Small Battery tray.STL
    • Deck/Cross Bar.STL
    • Deck/Deck front bottom left.STL
    • Deck/Deck front bottom main.STL
    • Deck/Deck front bottom right.STL
    • Deck/Deck front top left.STL
    • Deck/Deck front top right.STL
    • Deck/Deck Guide Rail left.STL
    • Deck/Deck Guide Rail right.STL
    • Deck/Deck Hook x N.STL
    • Deck/Deck rear bottom left.STL
    • Deck/Deck rear bottom main.STL
    • Deck/Deck rear bottom right.STL
    • Deck/Deck rear top left.STL
    • Deck/Deck rear top right.STL
    • Deck/Headache Rack.STL
    • Deck/Light Cover.STL
    • Deck/Ramp Mounting Bracket x2.STL
    • Deck/Ramp Mounting Rod x2.STL
    • Deck/Rear Deck End Panel.STL
    • Deck/Side Rail x4.STL
    • Deck/Sliding Deck Panel.STL
    • Deck/Wheel Chock x4.STL
    • Deck/Winch Mount.STL
    • Interior/Dashboard.STL
    • Interior/Seat left.STL
    • Interior/Seat Mount left.STL
    • Interior/Seat Mount right.STL
    • Interior/Seat right.STL
    • Interior/Steering column bracket.STL
    • Interior/Steering column.STL
    • Interior/Steering wheel.STL
    • Optional parts/Checked Plate Guide.STL
    • Optional parts/Deck Cover Bottom left 30mm.STL
    • Optional parts/Deck Cover Bottom left 60mm.STL
    • Optional parts/Deck Cover Bottom left 90mm.STL
    • Optional parts/Deck Cover Bottom right 30mm.STL
    • Optional parts/Deck Cover Bottom right 60mm.STL
    • Optional parts/Deck Cover Bottom right 90mm.STL
    • Optional parts/Deck Cover Top left 30mm.STL
    • Optional parts/Deck Cover Top left 60mm.STL
    • Optional parts/Deck Cover Top left 90mm.STL
    • Optional parts/Deck Cover Top right 30mm.STL
    • Optional parts/Deck Cover Top right 60mm.STL
    • Optional parts/Deck Cover Top right 90mm.STL
    • Optional parts/Sound Module Mount.STL
    • Optional parts/Spring Spacer 17mm.STL
    • Optional parts/Spring Spacer 3mm.STL
    • Ramp/Ramp connector x2.STL
    • Ramp/Ramp front x2.STL
    • Ramp/Ramp lear x2.STL
    • Ramp/Ramp Locking Pin.STL
    • Steering Wheel Move Module_ERH 6x6 MK1/35mm_Steering column_SWMM.STL
    • Steering Wheel Move Module_ERH 6x6 MK1/Steering column bracket_SWMM.STL
    • Steering Wheel Move Module_ERH 6x6 MK1/Steering wheel servo mount_SWMM.STL
  • Non 3d-printed parts list_ERH 6x6.pdf
  • Parts List_ERH 6x6.pdf

Learn more about the formats
Last update 2025-02-23 at 17:05
Publication date 2025-02-13 at 15:56
Design number 2733733
Elvis_RC_Studio

Elvis_RC_Studio

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

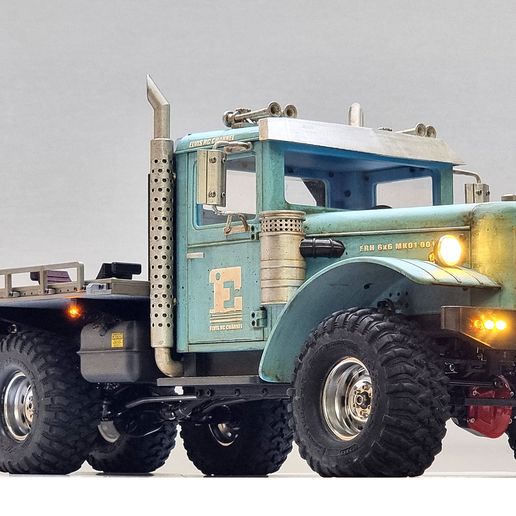

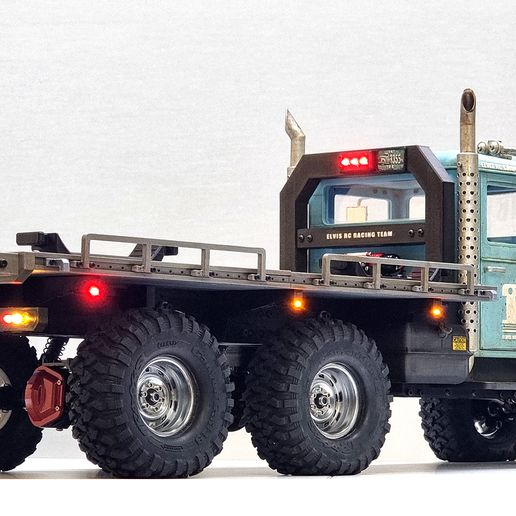

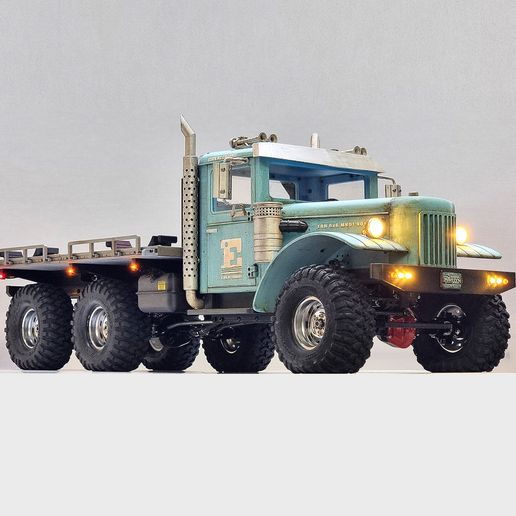

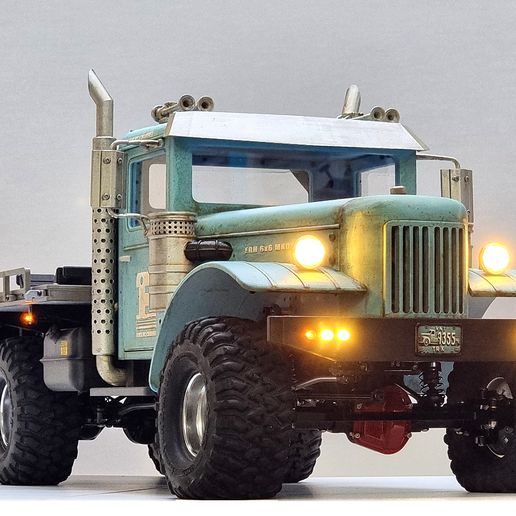

The ERH 6x6 MK1 "Rock Haul 6x6" is a six-wheeled hauler built on a coil spring suspension system.

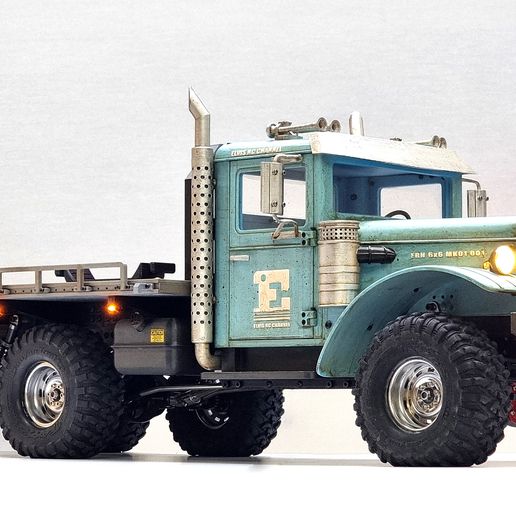

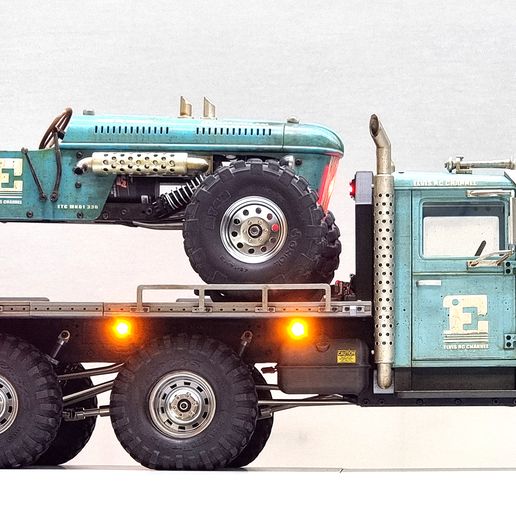

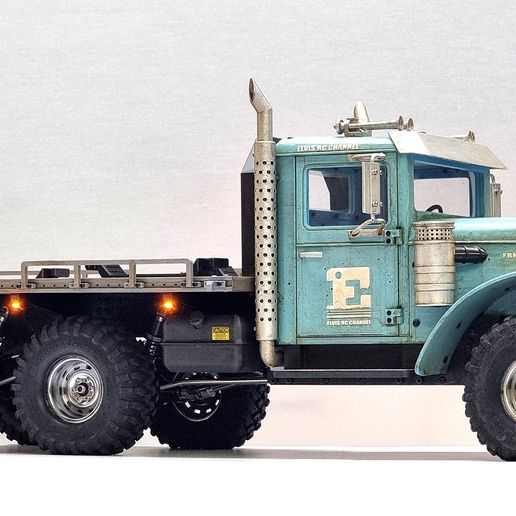

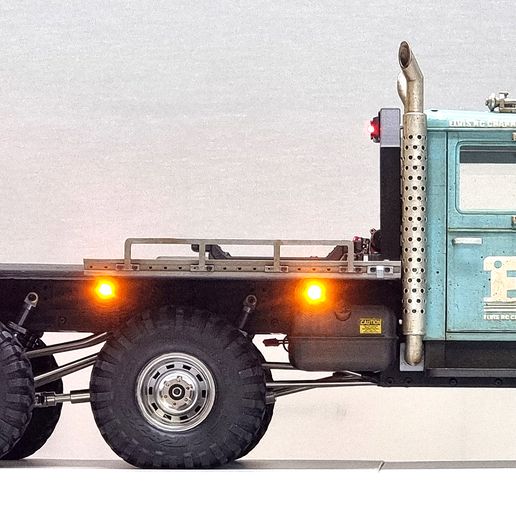

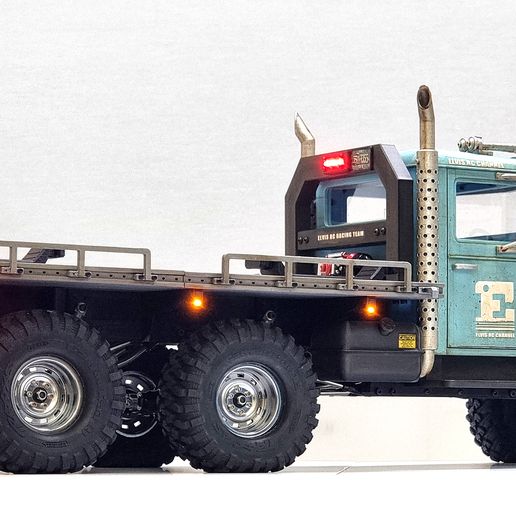

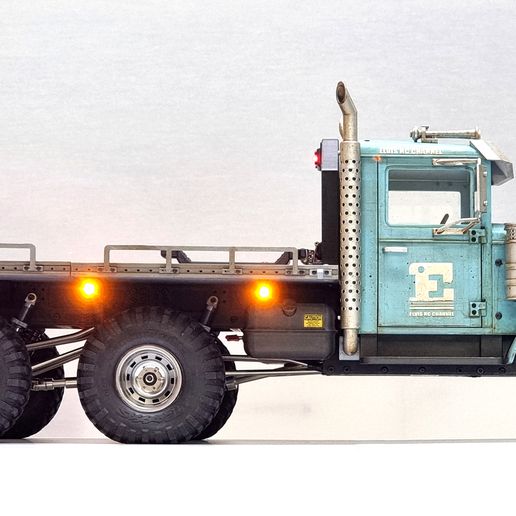

This model features a single-cab cabin, a vehicle-loading deck, twin air intakes, twin exhaust pipes, and double twin air horns, all inspired by various vintage trucks and haulers.

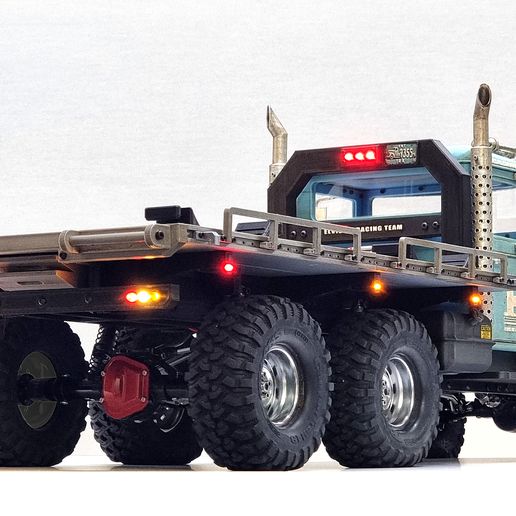

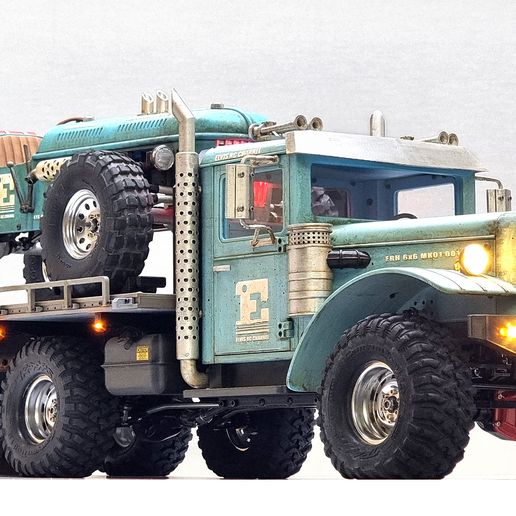

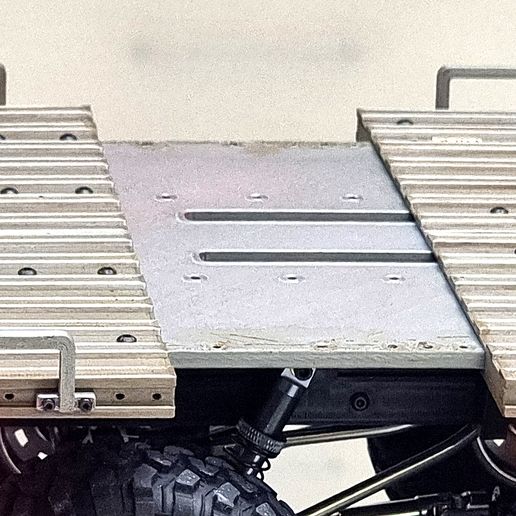

The deck includes a sliding mechanism that extends up to 90mm, allowing it to accommodate vehicles with longer wheelbases. Deck covers are also available in 30mm, 60mm, and 90mm increments to cover the extended sliding deck.

The sides of the deck feature a rail structure, enabling users to attach guardrails or securing hooks in any desired position and quantity. Users can also design and mount custom accessories as needed.

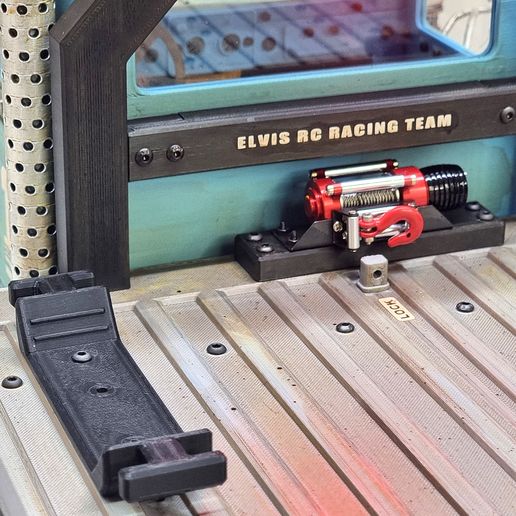

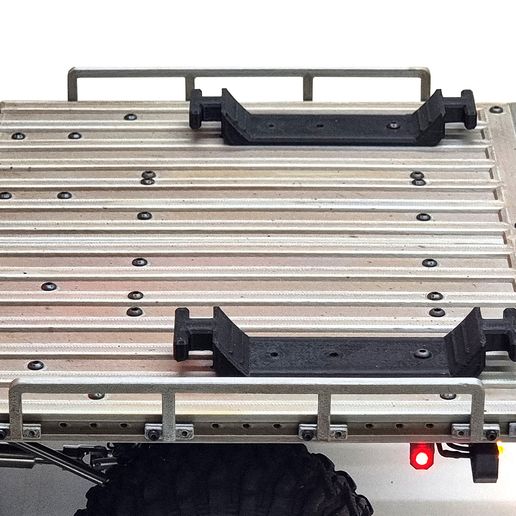

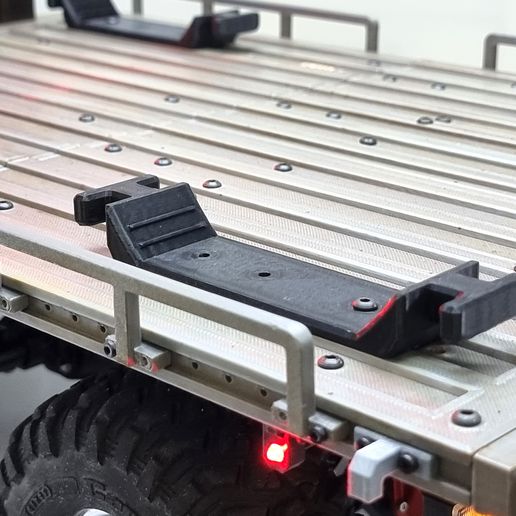

The deck’s wheel chocks are detachable and repositionable, with hooks provided to secure the loaded vehicle's wheels using rubber bands. Additionally, the top of the deck is equipped with a winch for vehicle loading.

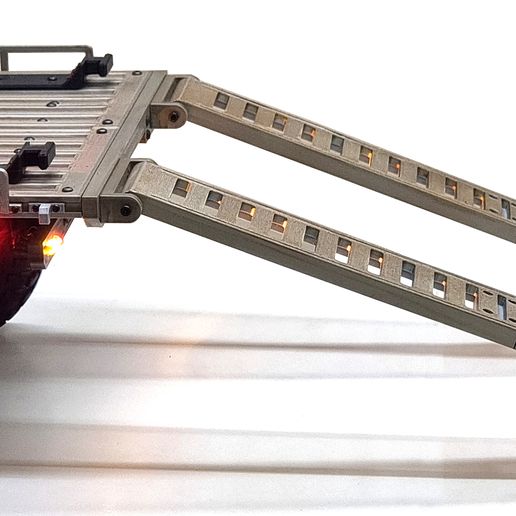

The ramps are fully stowable within the chassis and can be securely locked in place on the deck using ramp locking pins.

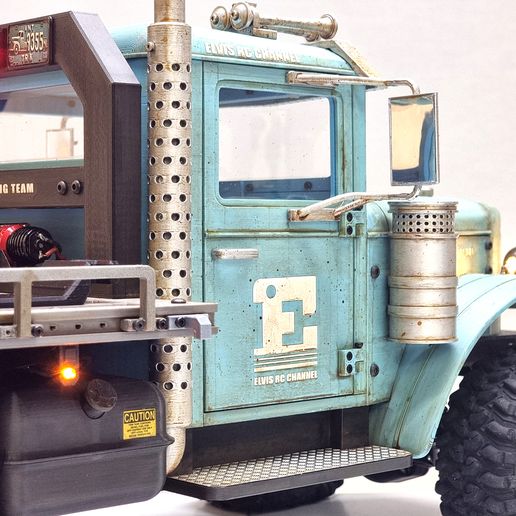

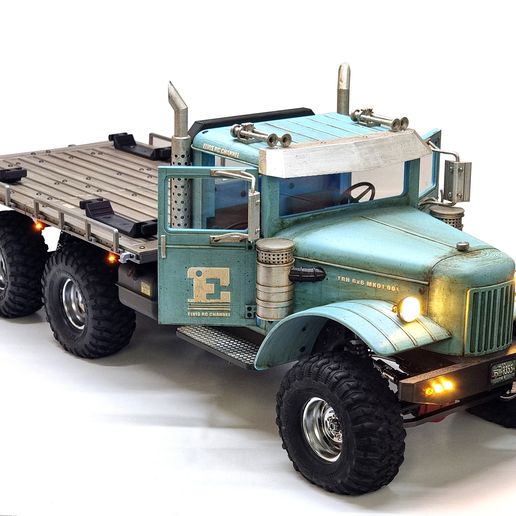

The driver's door is functional, featuring an opening mechanism and a reliable door lock for secure closure.

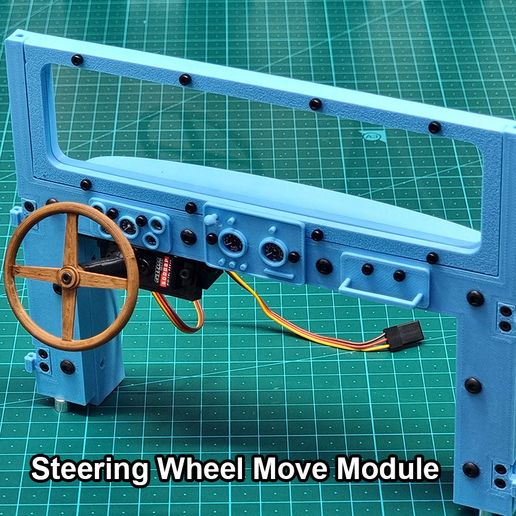

Optional features include a Steering Wheel Move Module and a mount for a sound module that can be installed in the engine bay. A template is also provided to assist with precise cutting of check plates for decorating the side steps. Furthermore, components are included for building heavy-duty shock absorbers.

The battery tray comes with two options, with the smaller tray offering a lower center of gravity.

Elvis RC develops its products with the philosophy of easy printing, high durability, and unique design at its core.

This model is a perfect embodiment of that philosophy, showcasing all these principles in its design.

https://youtu.be/-DaoFWAd_h0 - assembly manual video
https://youtu.be/sBrDPdQqWN8 - Driving footage - 1
https://youtu.be/VNv0bbdFqvs - Driving footage - 2

vehicle Specifications
777(867_sliding) x 282 x 238 (height) - Only the 3D-printed body and chassis
Wheelbase 382mm_Middle axle
540mm_Rear axle

The Elvis RC Community is hosted on a Facebook group, providing a space to ask and answer questions related to assembly.

In this group, you can explore other builders' creations, share ideas, and connect with fellow enthusiasts.

Join us to gain insights and enjoy the fun of building RC cars together!

https://www.facebook.com/groups/1297721991377726

3D printing settings

0.4mm nozzle
0.15mm layer height
bed temp: 50℃
nozzle temp: 230-240℃
top and bottom: 5 layer
wall: 2.0mm
fill: 40%
