EDR Mk1 "Dust Runner"_1/10 RC Body and Chassis

Advertising
Share
Add to
Make
Advertising
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
3 files (PDF and ZIP) Close
  • Dashboard.pdf
  • EDR Mk1.zip
    • Steering Wheel Move Module_EDR MK1/Steering wheel servo mount_SWMM.STL
    • Steering Wheel Move Module_EDR MK1/30mm_Steering column_SWMM.STL
    • Steering Wheel Move Module_EDR MK1/35mm_Steering column_SWMM.STL
    • Steering Wheel Move Module_EDR MK1/Steering column bracket_SWMM.STL
    • Steering Wheel Move Module_EDR MK1/25mm_Steering column_SWMM.STL
    • Chassis/Main frame front right.STL
    • Chassis/Battery Tray.STL
    • Chassis/Motor mount.STL
    • Chassis/Main frame rear right.STL
    • Chassis/Middle cross beam.STL
    • Chassis/Rear Chassis Plate.STL
    • Chassis/Main frame rear left.STL
    • Chassis/Main frame front left.STL
    • Chassis/Front cross beam.STL
    • Jig/Wing mirror guide.STL
    • Jig/Link Length Gauge for EDR.STL
    • Interior/Steering column_30mm.STL
    • Interior/Steering wheel.STL
    • Interior/Steering column_40mm.STL
    • Interior/Dashboard.STL
    • Interior/Steering column bracket.STL
    • Interior/Seat.STL
    • Interior/Steering column_35mm.STL
    • Optional parts/Roll Bar_A.STL
    • Optional parts/Fire Extinguisher Body.STL
    • Optional parts/Rock Slider left.STL
    • Optional parts/Fire Extinguisher Bracket.STL
    • Optional parts/Roll Bar_B.STL
    • Optional parts/Firewall.STL
    • Optional parts/Fire Extinguisher cap.STL
    • Optional parts/Rock Slider front.STL
    • Optional parts/Fire Extinguisher Handle.STL
    • Optional parts/Rock Slider right.STL
    • Attachments/Exhaust Header right.STL
    • Attachments/Exhaust Mid Pipe right.STL
    • Attachments/Wing Mirror left.STL
    • Attachments/Wing Mirror right.STL
    • Attachments/Exhaust Tip left.STL
    • Attachments/Fuel Tank Lower.STL
    • Attachments/Exhaust Header left.STL
    • Attachments/Exhaust Mid Pipe left.STL
    • Attachments/Exhaust Tip right.STL
    • Attachments/Fuel Tank Upper.STL
    • Attachments/Tail Light Cover x4.STL
    • Attachments/Fuel Cap x2.STL
    • Body/Windshield Frame.STL
    • Body/Windshield Glass Guide.STL
    • Body/Cockpit cowl.STL
    • Body/Windshield Firewall.STL
    • Body/Front cowl.STL
    • Body/Hood Latch.STL
    • Body/Hood.STL
  • Non 3d-printed parts list_EDR.pdf

Learn more about the formats
Publication date 2025-04-11 at 15:46
Design number 2894657
Elvis_RC_Studio

Elvis_RC_Studio

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

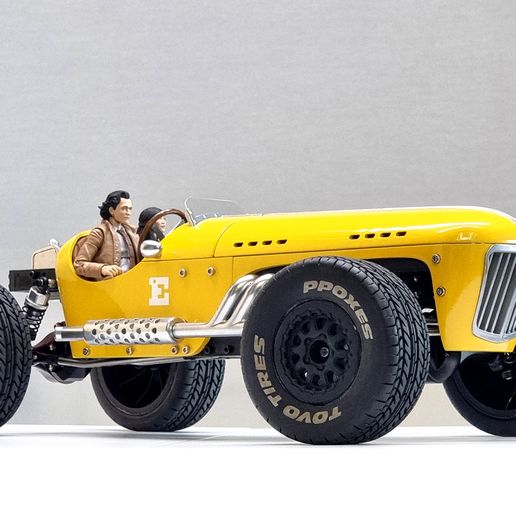

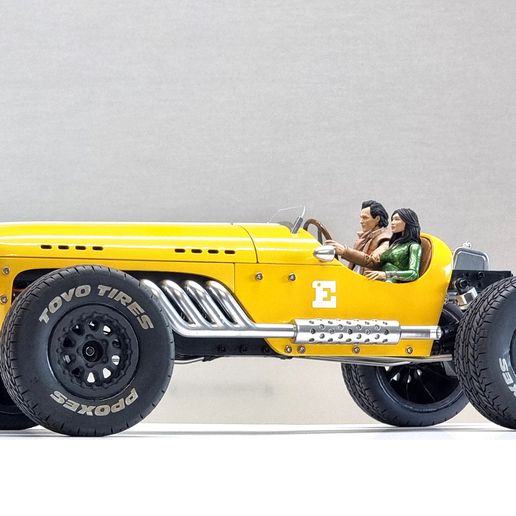

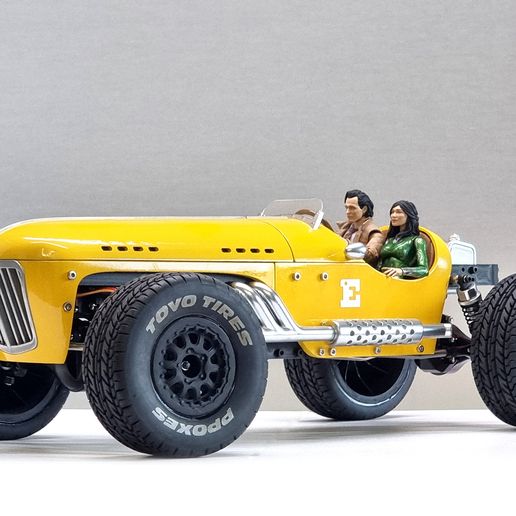

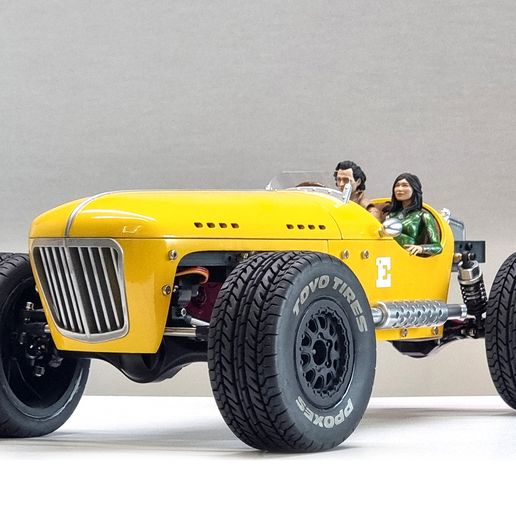

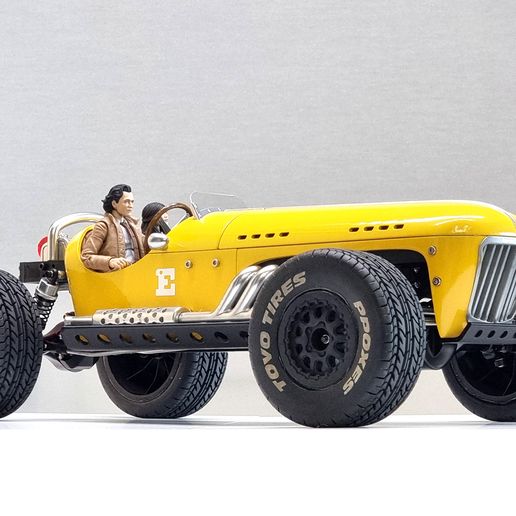

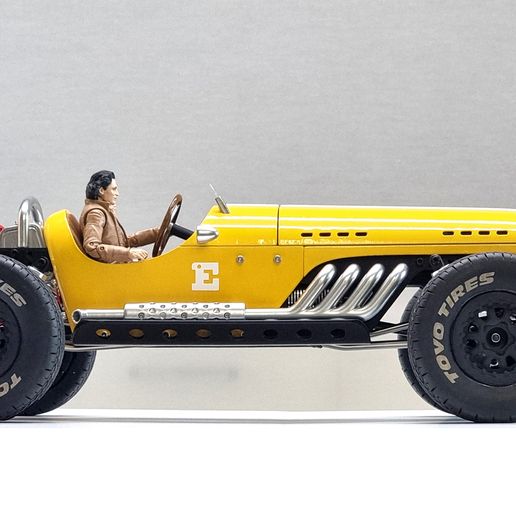

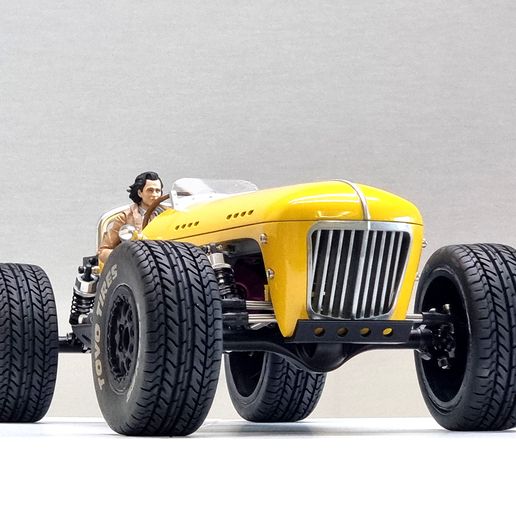

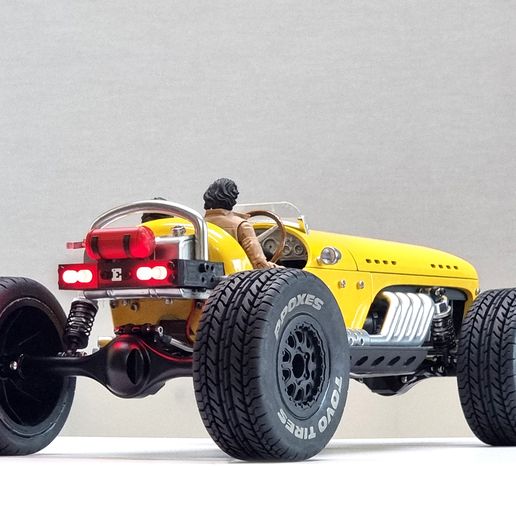

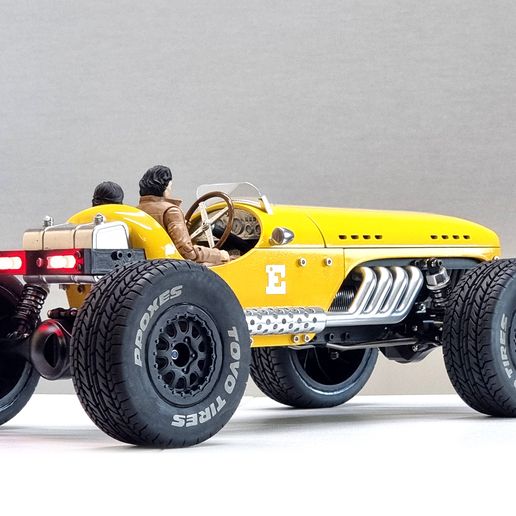

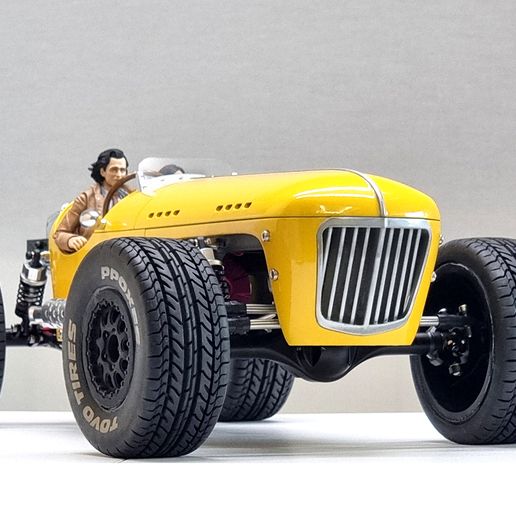

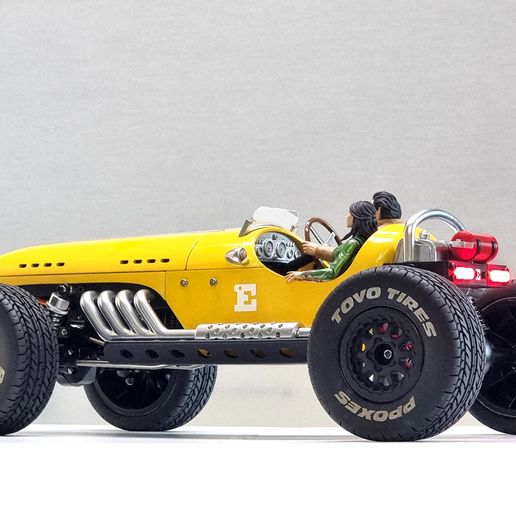

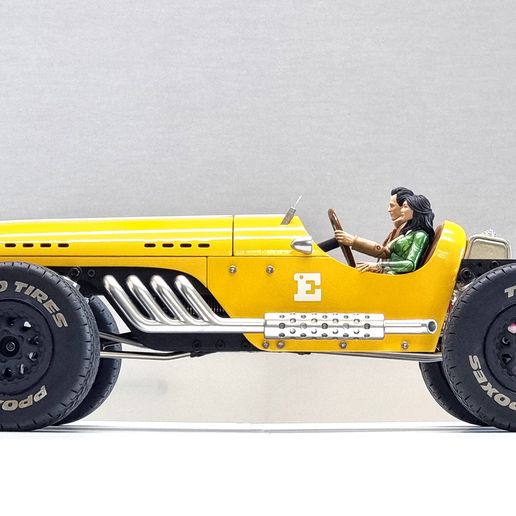

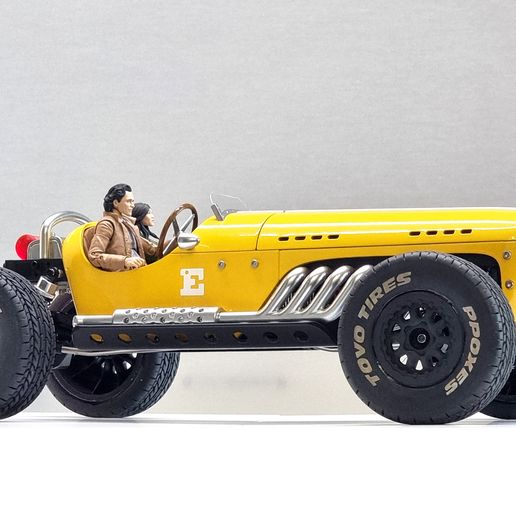

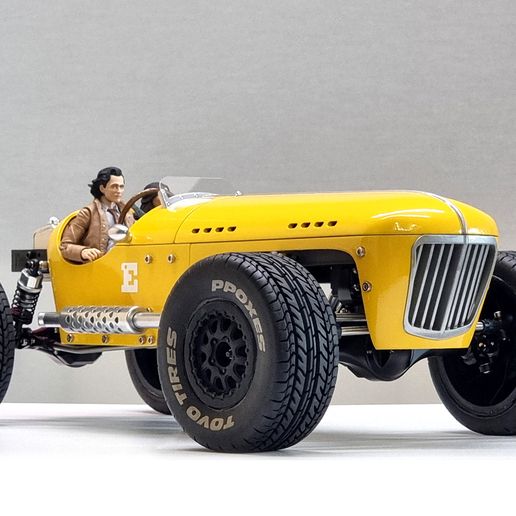

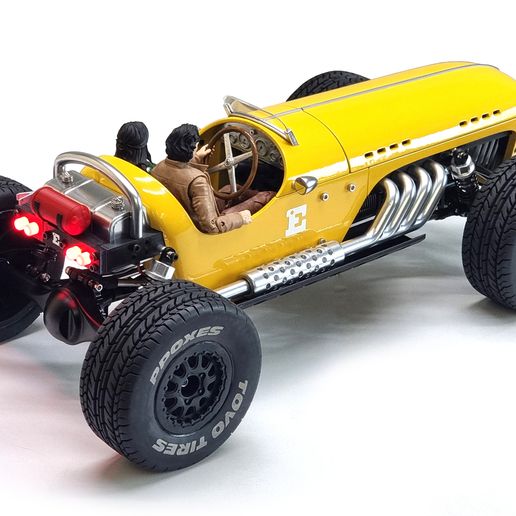

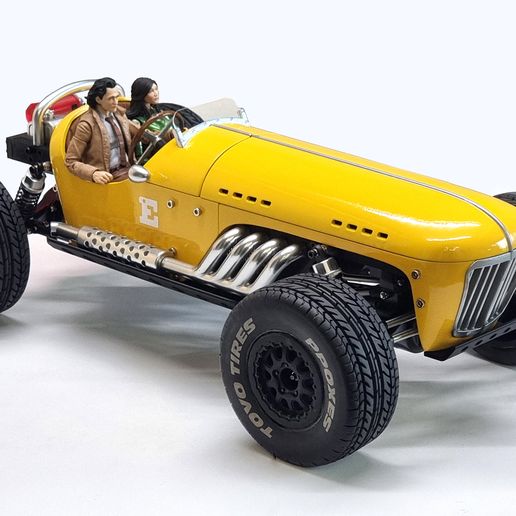

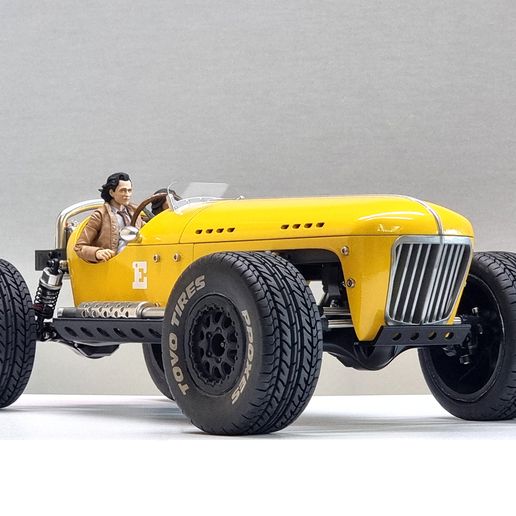

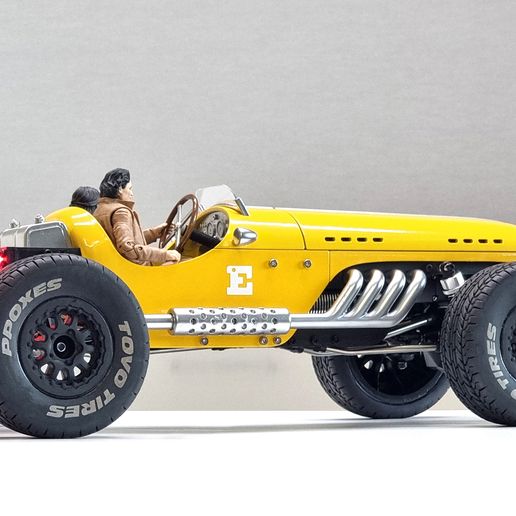

EDR Mk1 "Dust Runner" is a versatile 4WD RC model equipped with a coil spring suspension system, designed for both rally racing and crawling performance.
It inherits the elegant body lines of TraCrawler, one of Elvis RC's signature models, and features a beautifully streamlined vintage roadster design.

Built on straight axles with a low ground clearance, the Dust Runner offers excellent stability at high speeds and impressive climbing capability thanks to its low center of gravity.
By adjusting the transmission gear ratio and motor RPM, users can easily fine-tune the vehicle’s driving characteristics to suit different terrains and preferences.

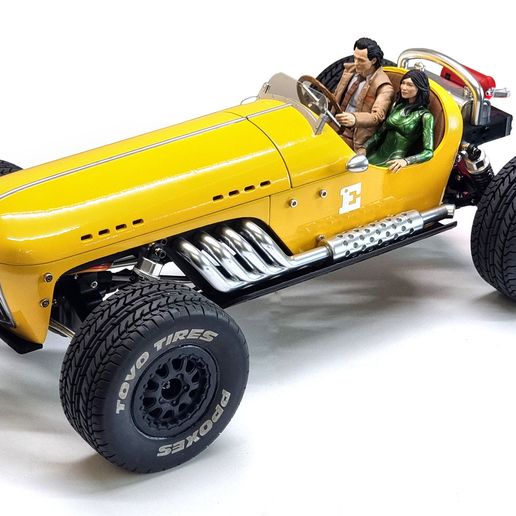

The newly designed chassis offers multiple shock mounting points, allowing greater flexibility in suspension setup. The widened cockpit supports a two-seater configuration, and the steering wheel can be mounted in three different positions. A functional steering movement system is also included.

Optional parts such as a fire extinguisher, roll cage, and rock sliders for crawling are available to further enhance the build.

At Elvis RC, our design philosophy centers around easy printing, enjoyable assembly, outstanding durability, and unique design—and the Dust Runner is a perfect embodiment of that vision.

https://youtu.be/teAbGX3EcHk - Assembly manual video
https://youtu.be/RDNE51Wr3xw - Driving footage

To print this model, a 3D printer with a build volume of at least 220×220×220mm is required

vehicle Specifications
422 x 148 x 104 (height) - Only the 3D-printed body and chassis

Compatible Battery Size
114 x 35 x 28

Wheelbase _330mm

The Elvis RC Community is hosted on a Facebook group, providing a space to ask and answer questions related to assembly.

In this group, you can explore other builders' creations, share ideas, and connect with fellow enthusiasts.

Join us to gain insights and enjoy the fun of building RC cars together!

https://www.facebook.com/groups/1297721991377726

3D printing settings

0.4mm nozzle
0.15mm layer height
bed temp: 50℃
nozzle temp: 230-240℃
top and bottom: 5 layer
wall: 2.0mm
fill: 40%
