Crawler V306 Cab SCX6 - 1/6 RC body

Advertising
Share
Add to
Make
Advertising
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
1 file (ZIP) Close
  • ahead RC Crawler V306 SCX6 Cab.zip
    • detail/cap 1.stl
    • detail/cap 2.stl
    • detail/front dish mount.stl
    • detail/front dish.stl

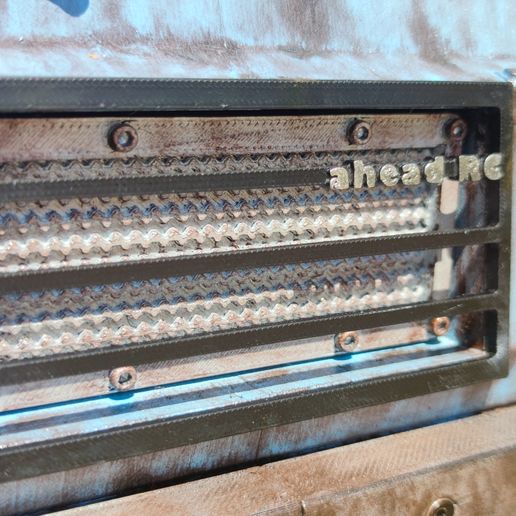

    • detail/grille (logo).stl
    • detail/radiator.stl
    • detail/wiper L.stl
    • detail/wiper R.stl
    • door/door handle L.stl
    • door/door handle R.stl
    • door/door L (magnet version).stl
    • door/door L.stl
    • door/door R (magnet version).stl
    • door/door R.stl
    • door/interior door handle L.stl
    • door/interior door handle R.stl
    • door/interior grab L.stl
    • door/interior grab R.stl
    • door/lower hinge 1.stl
    • door/lower hinge 1a.stl
    • door/lower hinge 2.stl
    • door/lower hinge 2a.stl
    • DXF/door L.dxf
    • DXF/door R.dxf
    • DXF/rear window.dxf
    • DXF/side window L.dxf
    • DXF/side window R.dxf
    • DXF/windshield L.dxf
    • DXF/windshield R.dxf
    • floor/boot.stl
    • floor/floor joiner 1.stl
    • floor/floor joiner 2.stl
    • floor/floor joiner 3.stl
    • floor/floor plan split L1.stl
    • floor/floor plan split L2.stl
    • floor/floor plan split R1.stl
    • floor/floor plan split R2.stl
    • floor/gear stick.stl
    • floor/hand brake lever.stl
    • floor/handbrake mount.stl
    • floor/seat base 1 curved cushion.stl
    • floor/seat base 1 flat cushion.stl
    • floor/seat base 2 curved cushion.stl
    • floor/seat base 2 flat cushion.stl
    • floor/seat brace 1.stl
    • floor/seat brace 2.stl
    • floor/seat brace 3.stl
    • floor/seat brace 4.stl
    • floor/seat rest 1.stl
    • floor/seat rest 2.stl
    • inner fender/Fender front L.stl
    • inner fender/Fender front R.stl
    • inner fender/Fender rear L low profile 1.stl
    • inner fender/Fender rear L low profile 2.stl
    • inner fender/Fender rear L.stl
    • inner fender/Fender rear R low profile 1.stl
    • inner fender/Fender rear R low profile 2.stl
    • inner fender/Fender rear R.stl
    • interior/dashboard mount.stl
    • interior/dashboard skirt split 1.stl
    • interior/dashboard skirt split 2.stl
    • interior/dashboard split 1.stl
    • interior/dashboard split 2.stl
    • interior/steering column.stl
    • interior/steering wheel.stl
    • Lights/blinker L.stl
    • Lights/blinker R.stl
    • Lights/headlight bucket 1.stl
    • Lights/headlight bucket 2.stl
    • Lights/headlight lens 1.stl
    • Lights/headlight lens 2.stl
    • mirror/mirror arm L.stl
    • mirror/mirror arm R.stl
    • mirror/mirror L.stl
    • mirror/mirror R.stl
    • mount/Mount SCX6 L CAB ONLY.stl
    • mount/Mount SCX6 R CAB ONLY.stl
    • roof/roof split 1.stl
    • roof/roof split 2.stl
    • ahead RC V306 Cab SCX6.pdf
    • bumper/bumper front split 2.stl
    • bumper/bumper front split 1 (High clearance version).stl
    • bumper/bumper front split 1.stl
    • bumper/bumper front split 2 (High clearance version).stl
    • bumper/front bumper and floor mount.stl
    • bumper/front skid (narrow).stl
    • bumper/front skid (wide).stl
    • bumper/front skid logo (narrow).stl
    • bumper/front skid logo (wide).stl
    • cab/cab joiner 1.stl
    • cab/cab joiner 2.stl
    • cab/cab joiner rear.stl
    • cab/cab L1.stl
    • cab/cab L2 (door magnet version).stl
    • cab/cab L2.stl
    • cab/cab R1.stl
    • cab/cab R2 (door magnet version).stl
    • cab/cab R2.stl
    • cab/roof joiner 1.stl
    • cab/roof joiner 2.stl
    • cab/roof joiner 3.stl

Learn more about the formats
Publication date 2025-03-10 at 10:22
Design number 2810244
ahead_RC

ahead_RC

Certified account
Issue with this design? Report a problem.

Template info

3D model description

Requires a printer with minimum 256x256x256mm build volume (Bambu Lab X1 size).

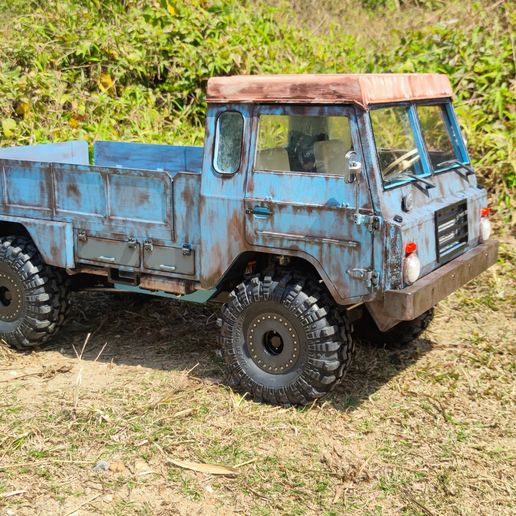

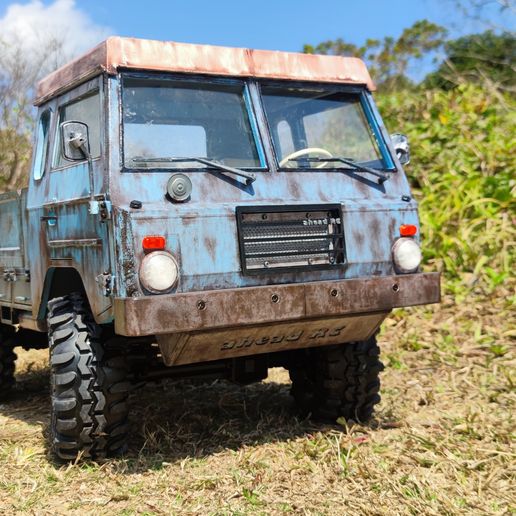

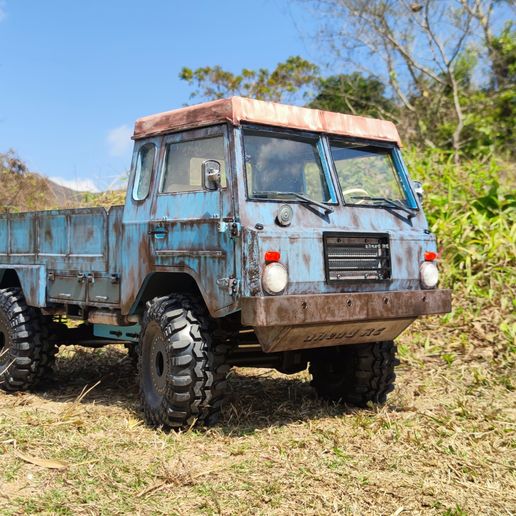

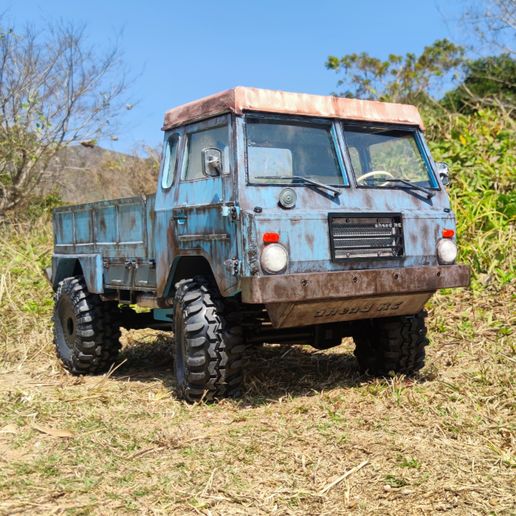

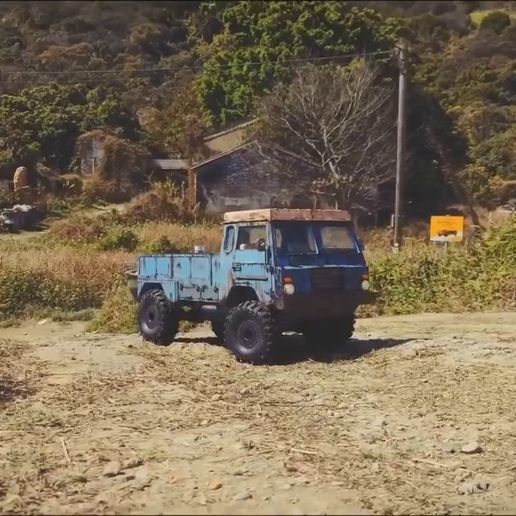

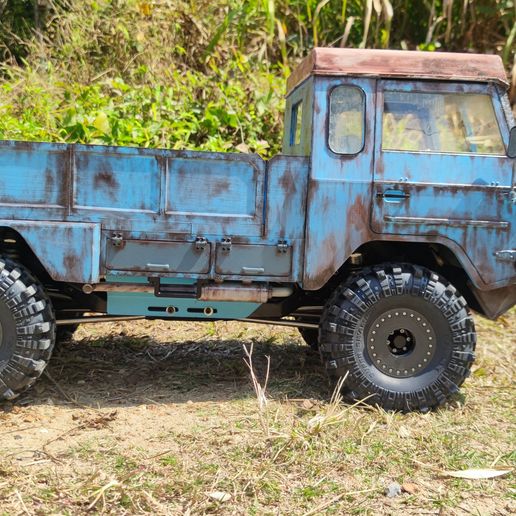

Please note the V306 SCX6 flatbed in the pictures is sold separately. Wheels and tyres, 1:10 V306, 1:1 Jimny, are not included.

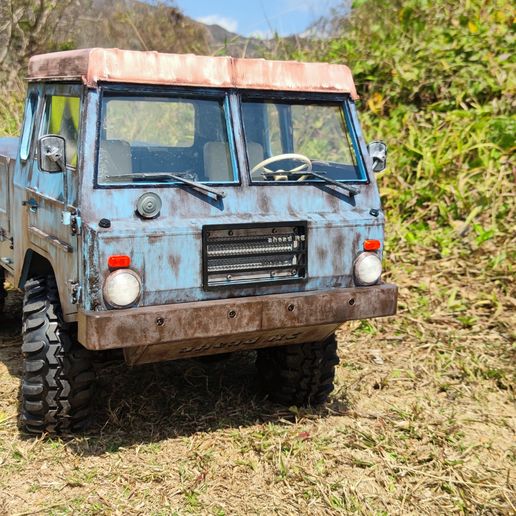

Everybody seems to love ‘flatpack’ styled Swedish trucks, so much so a much larger version of it actually makes it even more fun to look at and drive around in!

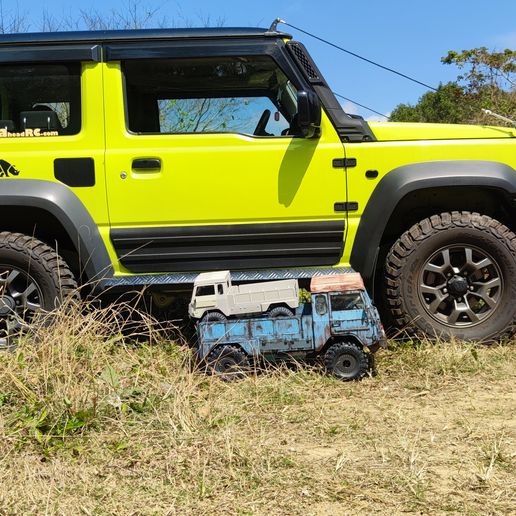

A size comparison between 1:10, and 1:1 are shown in the images.

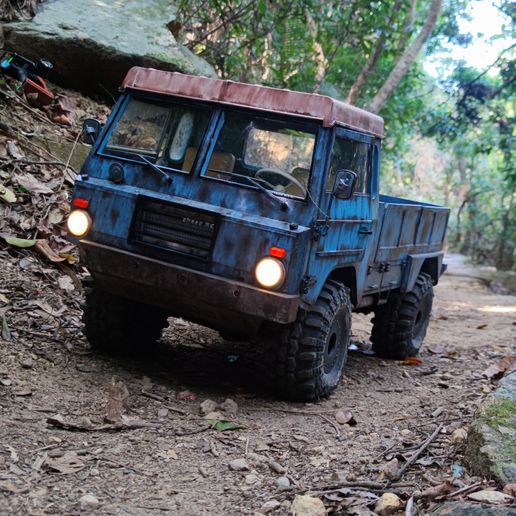

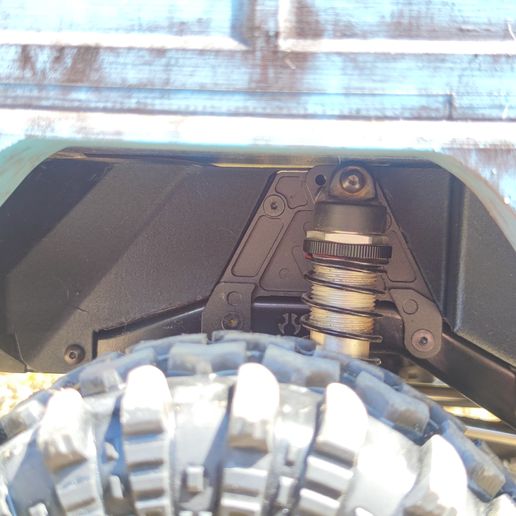

This body benefits from a slightly lower ride height for more scale stance and CG. The ride height setup shown in the pictures has the front and rear shock lower rod ends mounted in the axles’ lower mounting tabs, at the link mount’s level.

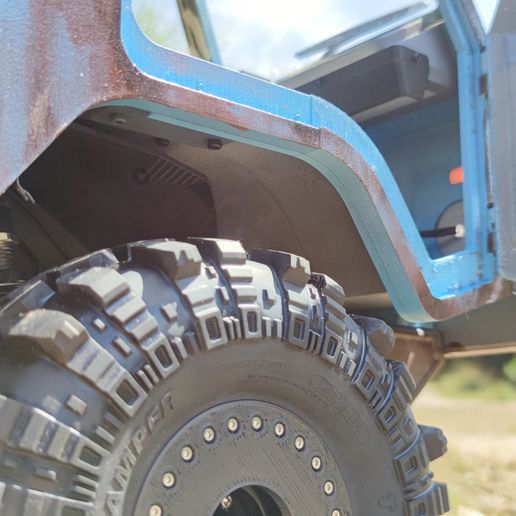

Please note that all inner fenders will have to be removed and replaced with the ones included in the files.

For best weight distribution across the entire truck, it is highly recommended to use the cab together with the flatbed.

Easy printability: the cab itself is split into 4 parts and is assembled with hardware to improve stiffness and durability.

The flatbed and cab should be paired with the SCX6’s stock wheelbase of 501mm, tyre to tyre outermost width of 378mm, and 7in to 7.5in diameter tyres.

SCX6 body mounts are also included, which bolt directly onto the chassis rails.

Some of the features and details included:

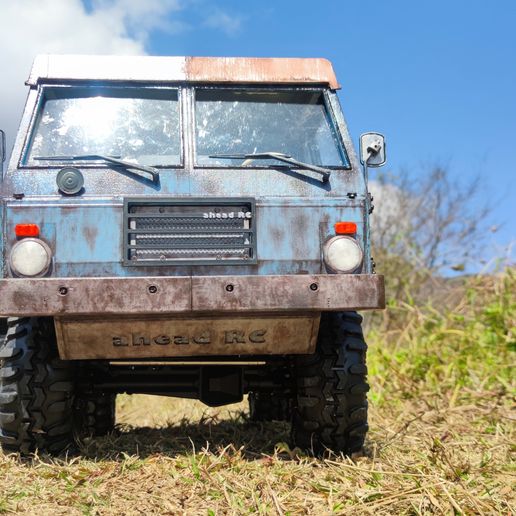

Standard and high clearance bumper versions
Narrow and wide front bumper skid plates

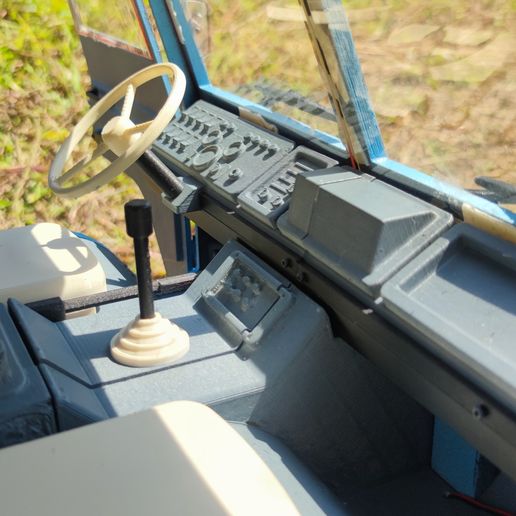

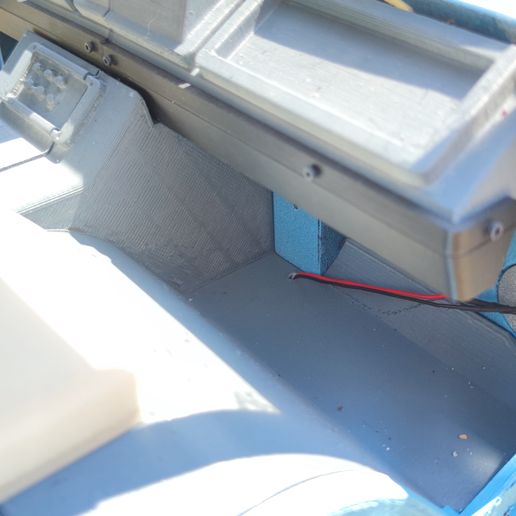

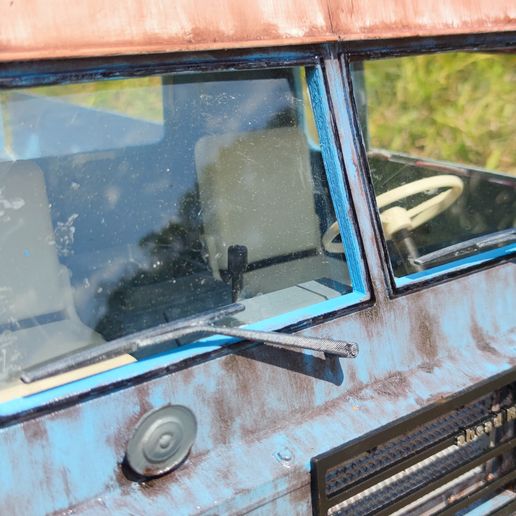

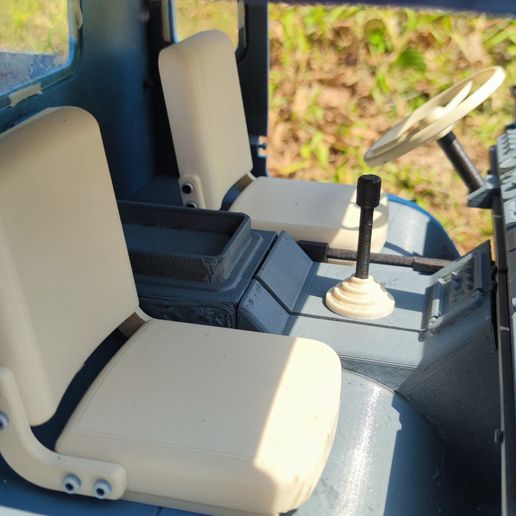

Fully detailed interior, floor plan, dashboard and steering wheel

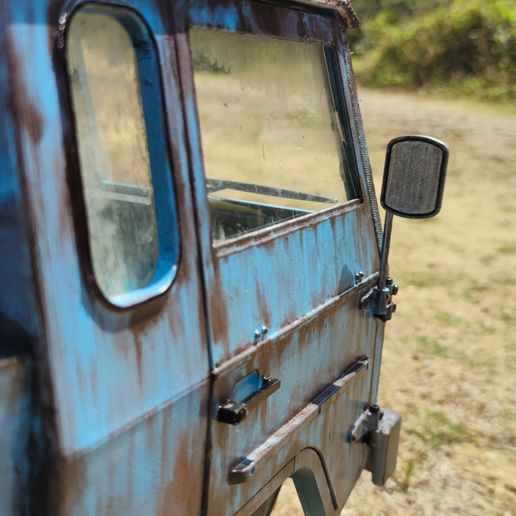

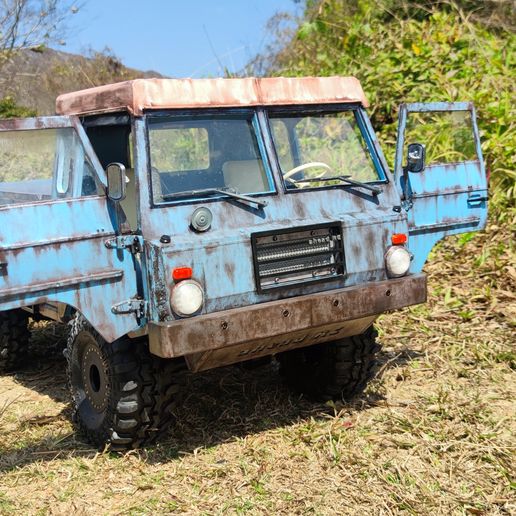

Functional hinged doors
2 styles of latching doors, including magnetic and screw head clip
Custom designed inner fenders included, with 2 different versions for the rear

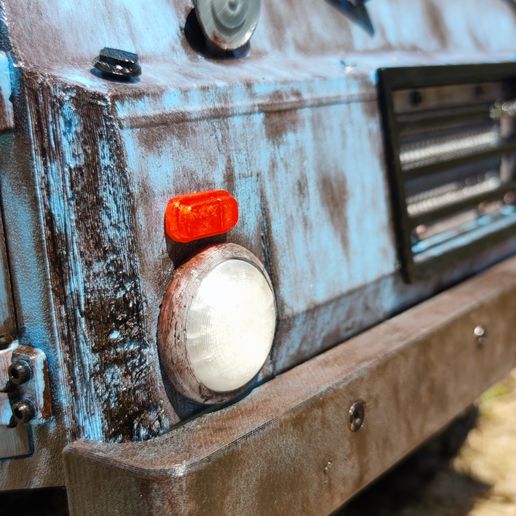

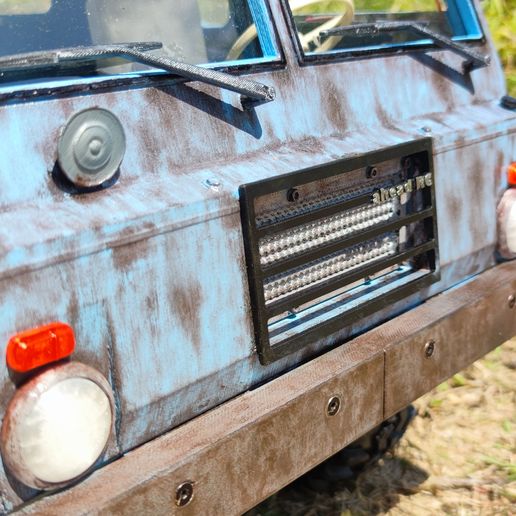

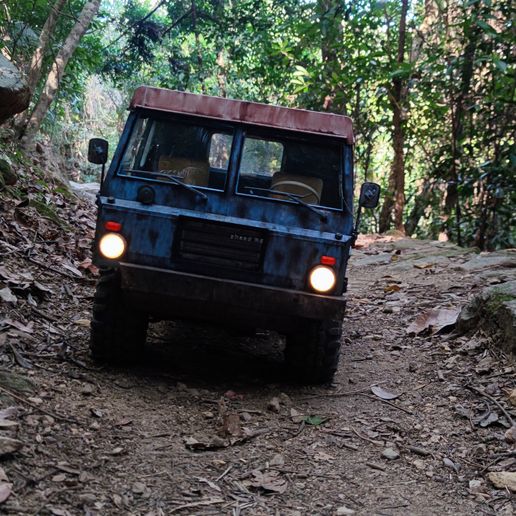

Fully functional light buckets
Split part printing and solid assembling

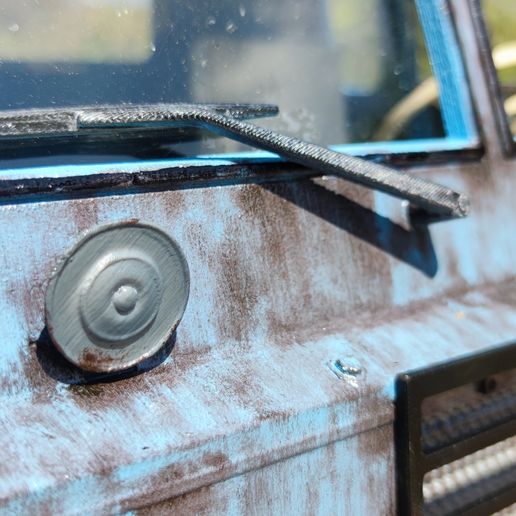

Detailed exterior parts

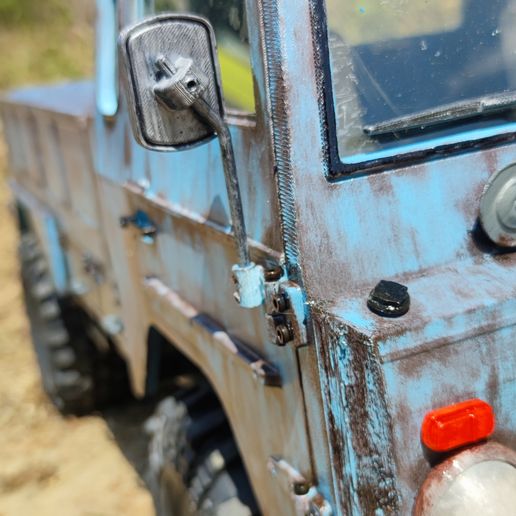

Adjustable mirrors

Be sure to check out the instruction manual and gather all required hardware for assembly.

It is highly recommended to read the instruction manual before purchasing, to ensure you have all the required tools and hardware to assemble this body.

.DXF window outline files are included with this body.
Assembly instructions:
View the link below to download the assembly instructions
https://www.aheadrc.com/manual

Manufacturing settings

FDM printing:
PLA+ or PETG filament
0.2-0.4mm layer heights
30-50% infill density
Supports are necessary
