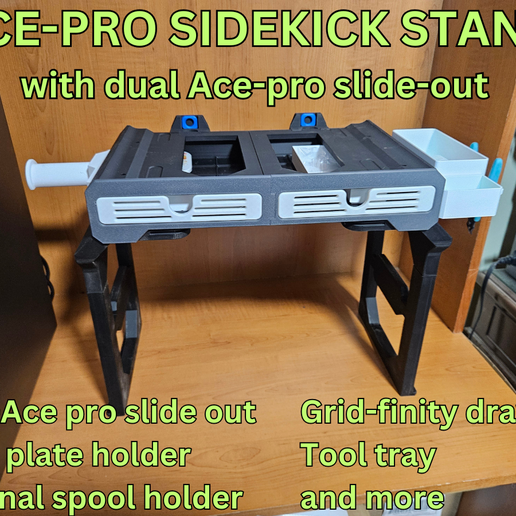

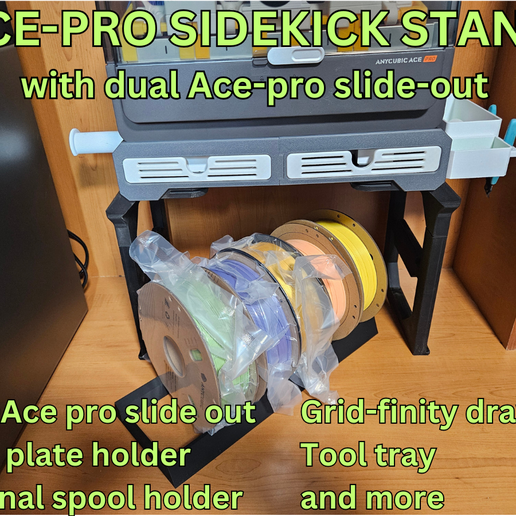

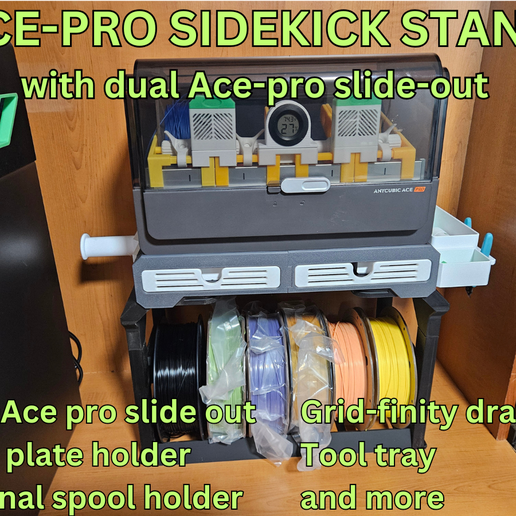

DUAL ACE-PRO SIDEKICK STAND

IMPORTANT: If you bought my KOBRA-3 DUAL ACE-PRO STAND there is a coupon that can be used for a reduced price for this model. You need to use it at the time of purchase. The coupon is a pdf named "coupon code" and included with the downloadable files with the KOBRA-3 DUAL ACE-PRO STAND.

NEW: The model offers two types of drawer front, vertical and slanted. The main print profile has the slanted drawers as I felt it would add a little something to the design. If you want vertical drawers please use the print profile "Anycubic non-slanted drawers.3mf"

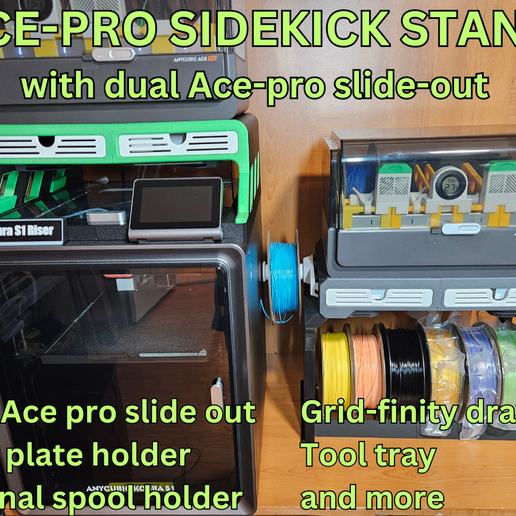

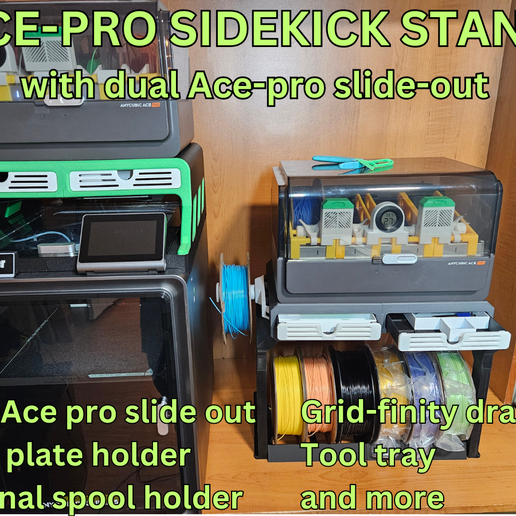

Two Ace-pros can be connected to the K3, K3 max or S1. The Dual Ace-Pro SIDEKICK stand was designed to offer you the choice of where and how to set up your 2nd Ace-Pro.

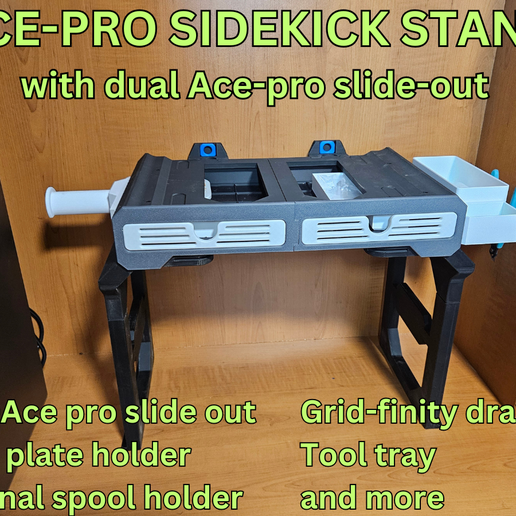

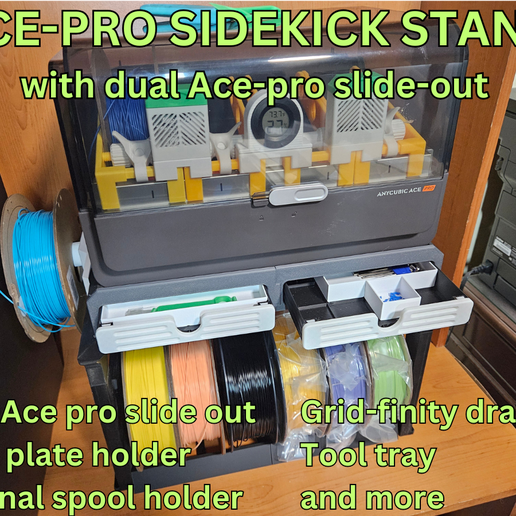

The Dual Ace-Pro SIDEKICK stand offers you the ideal solution and features:

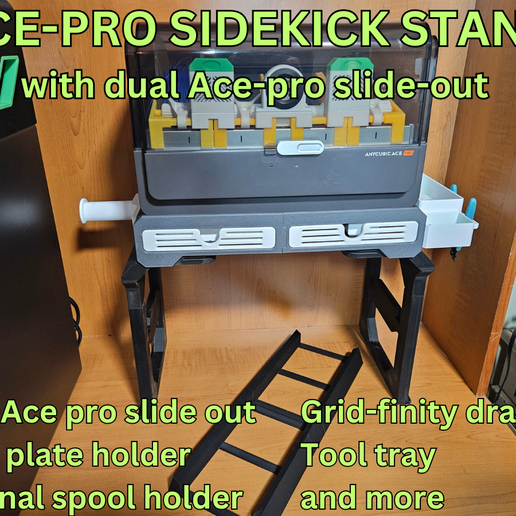

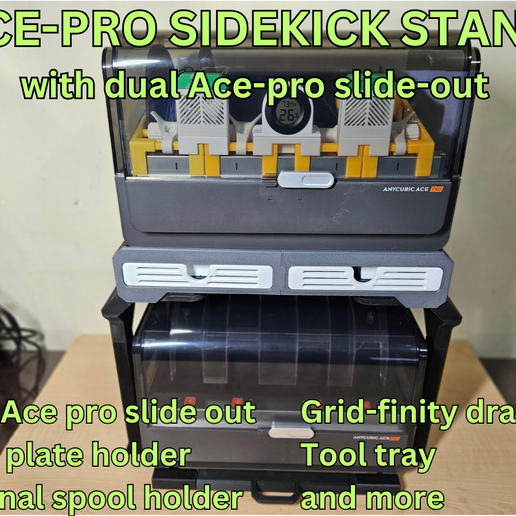

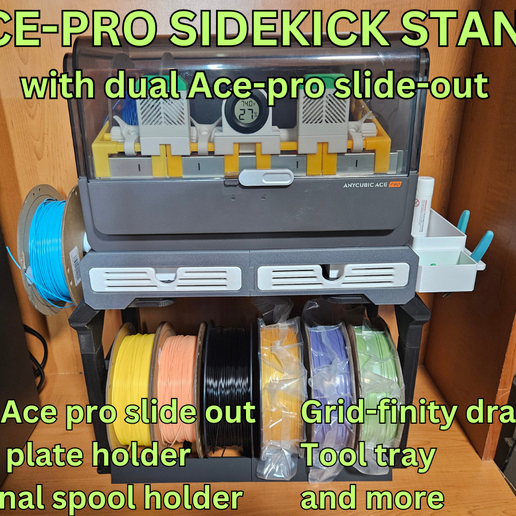

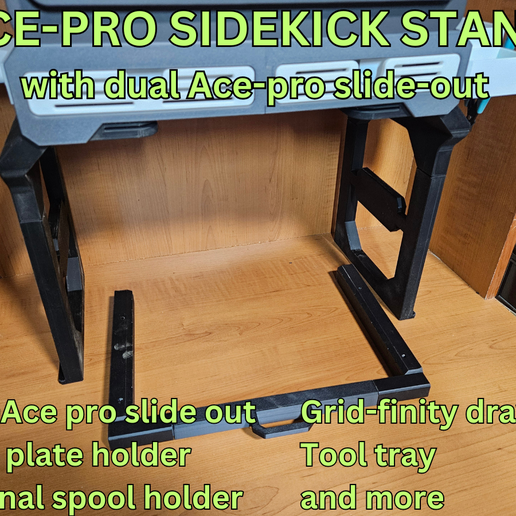

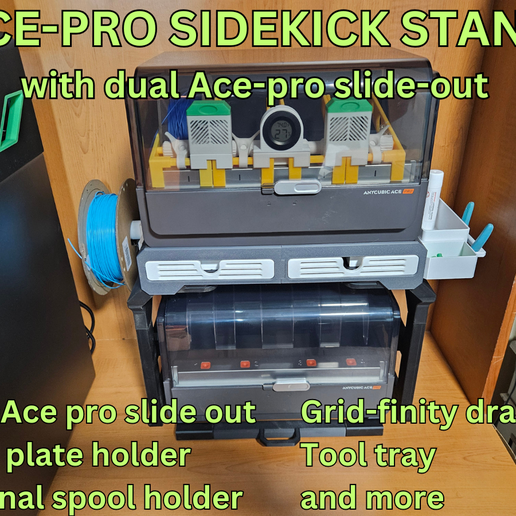

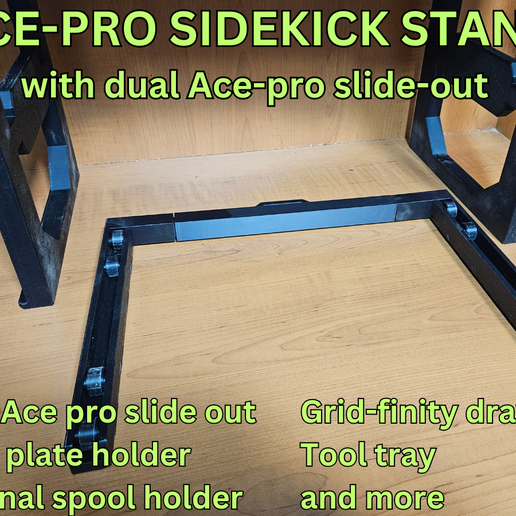

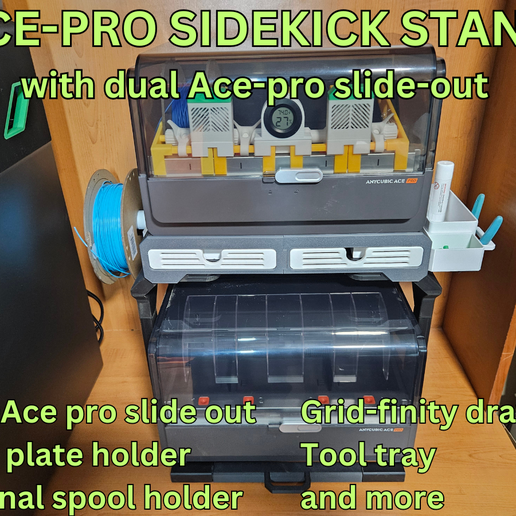

Stack two Ace-Pros - the model features a screw-on slide-out drawer to enable the bottom Ace-Pro to be rolled out for easy maintenance and filament change;

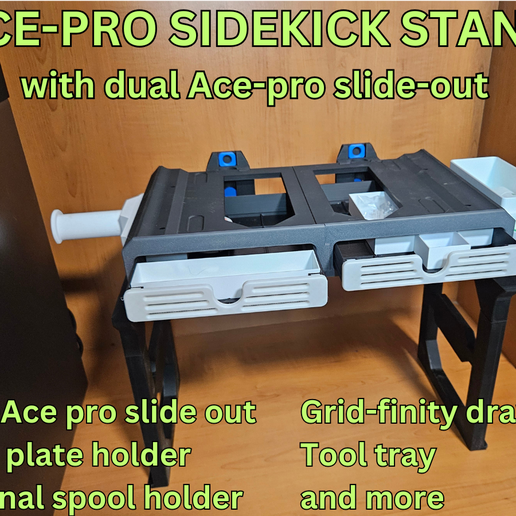

Two large drawers with GRID-FINITY style compartments (the compartments can be downloaded for free on Makeronline);

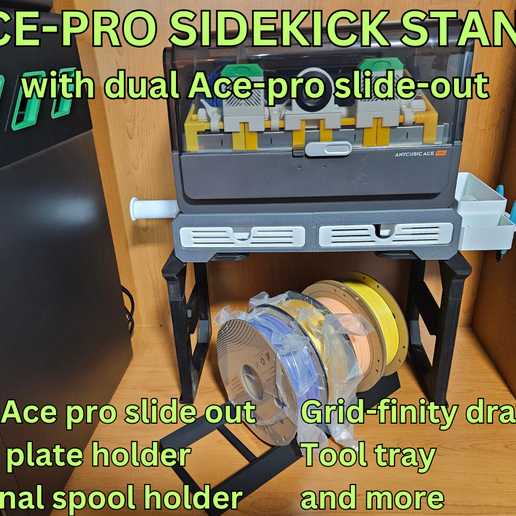

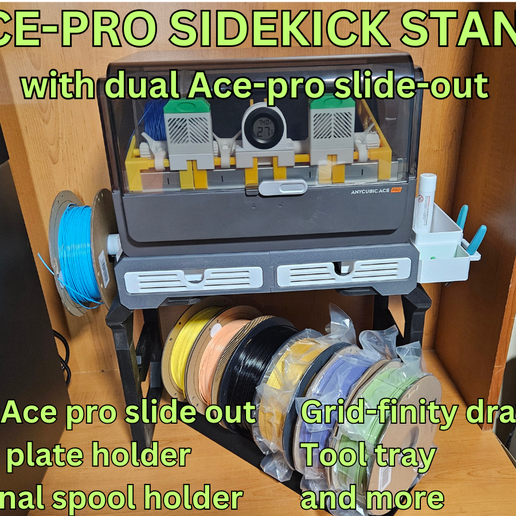

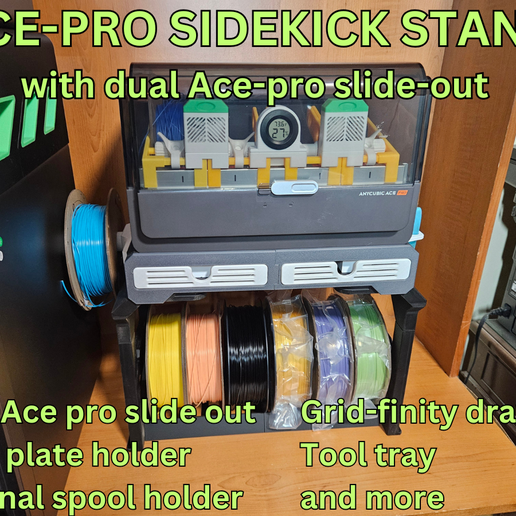

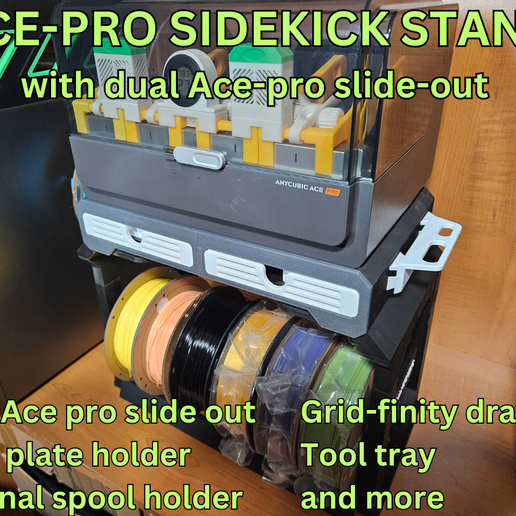

Filament storage rack;

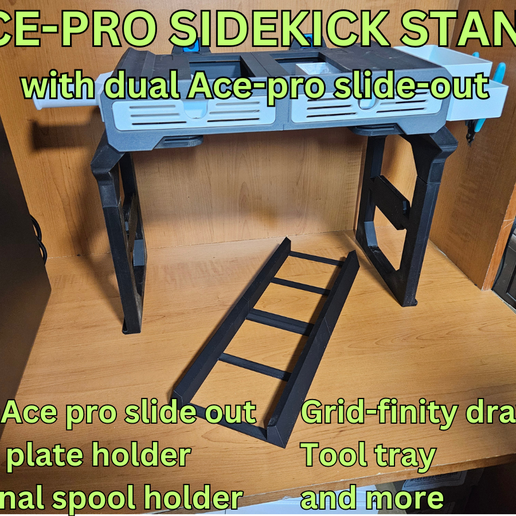

Build plate holder for two or more buildplates;

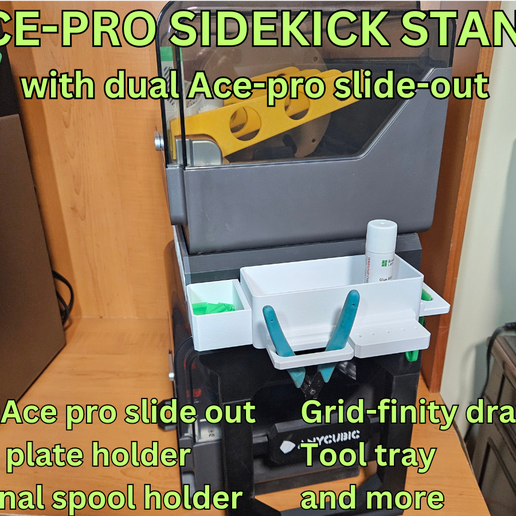

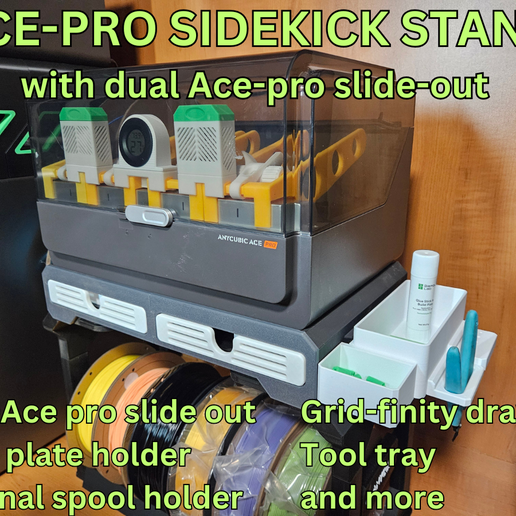

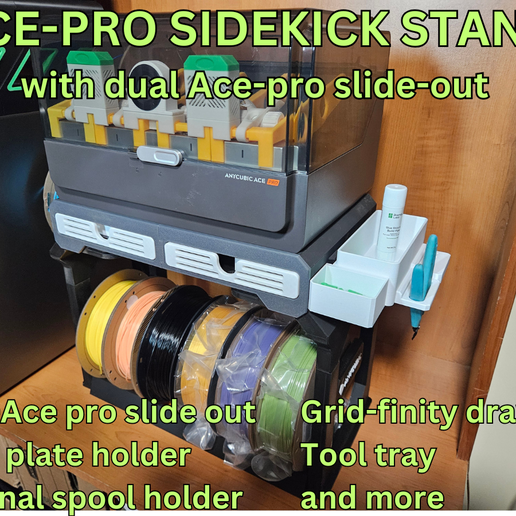

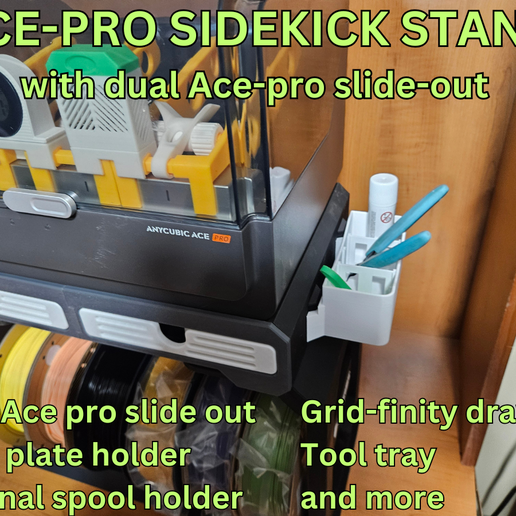

Side mounted tool tray (can be can be downloaded for free on Makeronline);

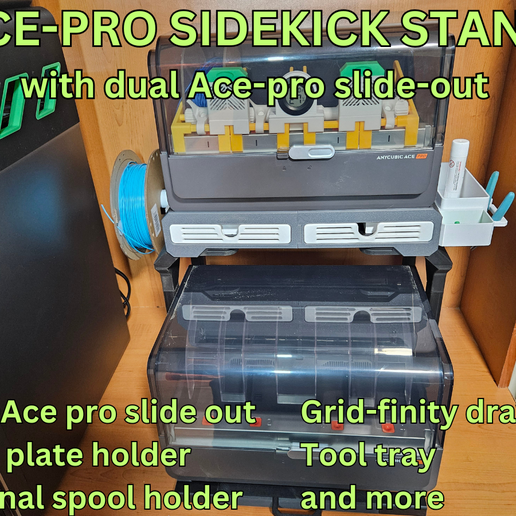

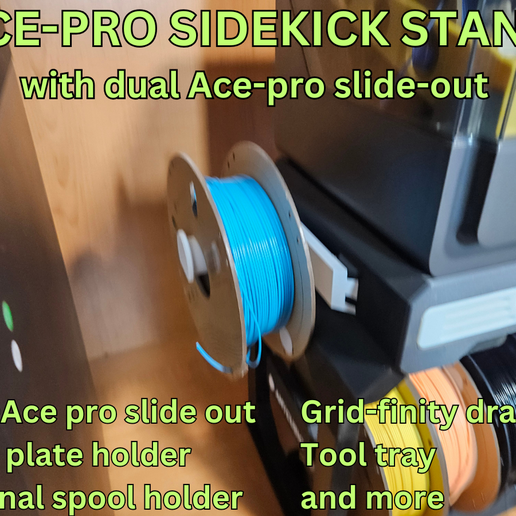

Side mounted External spool holder (can be downloaded for free on Makeronline);

TECHNICAL SPECS AND INFO

• The build requires about 1.75 spools of filament.

• PLA and PETG are fine. The design is very rugged so no need to use ABS or ASA.
• The assembled height is a little under 600 mm (24 inches) with closed lid
• If you wish to use the pull-out drawer you will need 4x no. 6 wood screw 5/8" long (metric: 3.5mm dia x 16mm long)

INSTRUCTIONS

IMPORTANT: I have included a print profile (3mf file) for the base unit with all the required parts. I strongly recommend you use this as the parts are correctly oriented and optimized for printing. I have painted support and it is designed to use TREE MANUAL settings.

I have also uploaded individual STL files for the parts.

ASSEMBLY

A Gif assembly video with the model description photos shows how to assemble the Ace-overhead. I also uploaded a zip with the assembly photos.

LINKS FOR ADD-ONS

All add-ons are uploaded to Makeronline and available for free download.

External spool: https://www.makeronline.com/en/model/EXTERNAL%20SPOOL%20HOLDER%20FOR%20ACE-PRO%20SIDEKICK%20AND%20ULTIMATE%20MOUNT/168482.html

Tool tray: https://www.makeronline.com/en/model/TOOLTRAY%20FOR%20ACE-PRO%20SIDEKICK%20AND%20ULTIMATE%20MOUNT/168483.html

Modular tool tray: https://www.makeronline.com/en/model/MODULAR%20TOOL%20TRAY%20FOR%20ACE-PRO%20SIDEKICK%20AND%20ULTIMATE%20MOUNT/168485.html

Add-on tray: https://www.makeronline.com/en/model/ADD-ON%20TRAY%20FOR%20ACE-PRO%20SIDEKICK%20AND%20ULTIMATE%20MOUNT/168481.html

Drawer compartments: https://www.makeronline.com/en/model/Drawer%20compartments%20for%20Kobra%20S1%20riser/157319.html
